TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 151
Hard disk drives / solid state drives
7.2.6.3 Installing the new SAS backplane

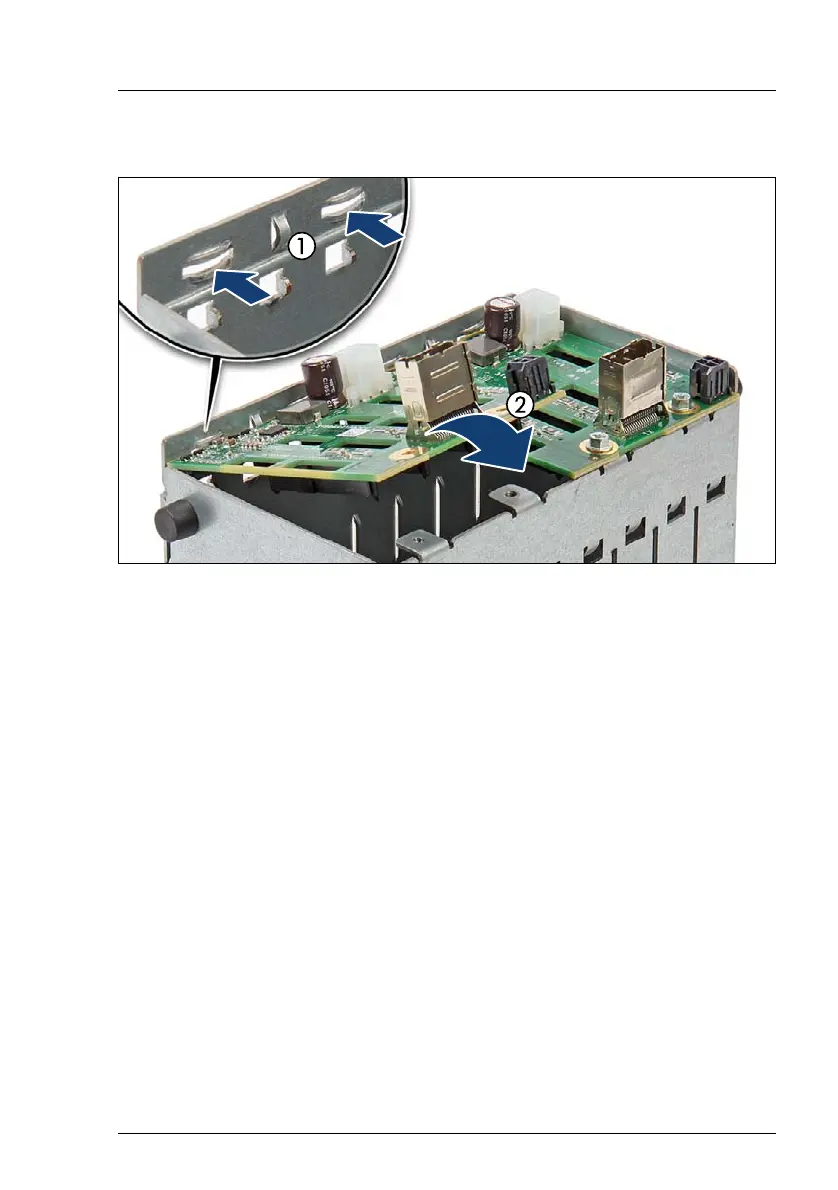

Figure 74: Installing the 2.5-inch HDD SAS backplane
Ê At a slight angle, fit the SAS backplane into the two guides on the HDD cage
(1).
Ê Fold down the SAS backplane (2).
Ê Secure the SAS backplane with the two screws (see figure 72).
Ê Connect the power cable and the SAS cable to the SAS backplane (see
figure 72).
7.2.6.4 Concluding steps
Ê "Installing the system fan holder" on page 77
Ê "Reassembling" on page 64
Ê "Installing a 2.5-inch HDD / SSD module" on page 143 and "Installing a 2.5-
inch HDD / SSD dummy module" on page 147.
I For detailed information on HDD mounting order, refer to section "2.5-
inch HDD / SSD configurations" on page 138.
Ê "Connecting the server to the mains" on page 74
Ê "Switching on the server" on page 75
