308 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
Accessible drives and LSD

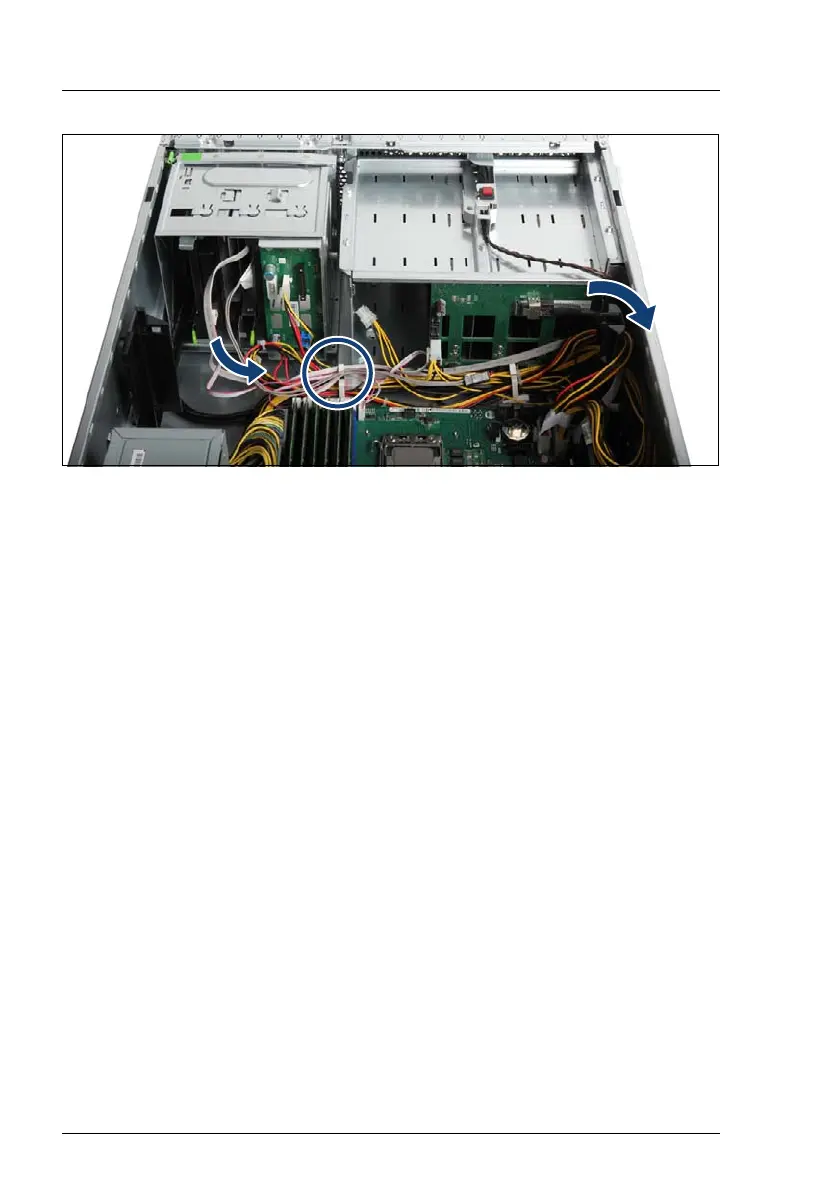

Figure 226: Routing cables
Ê Run the SATA cable along the drive bays and through the cable clamp on
the server floor as shown.
Ê Run the SATA cable through the cable guide.
12.6.1.6 Concluding steps
Ê "Installing the system fan holder" on page 77
Ê "Reassembling" on page 64
Ê "Connecting the server to the mains" on page 74
Ê "Switching on the server" on page 75
