TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 423
17.2.1.3 I/O panel connectors

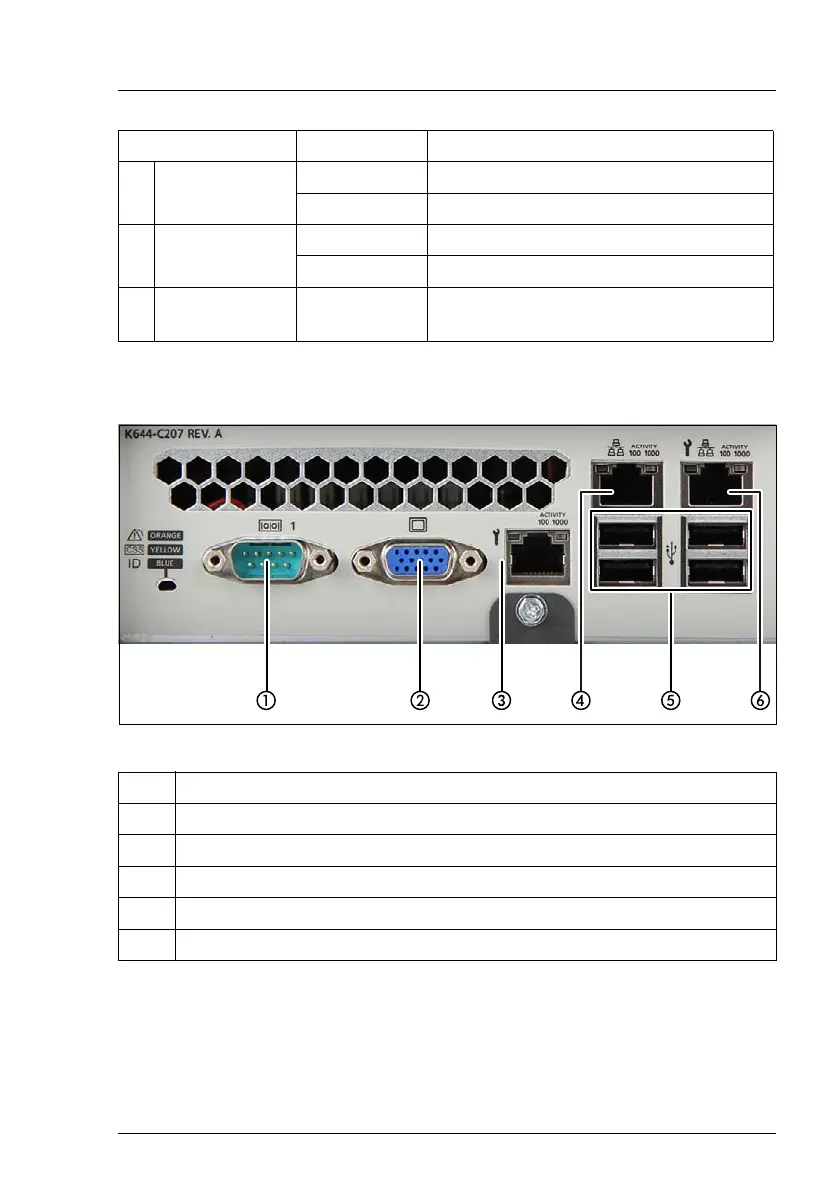

Figure 333: I/O panel connectors
Depending on BIOS settings, the shared LAN connector may also be used as
a management LAN connector. For further information, please refer to the
corresponding BIOS Setup Utility reference manual.
N Fans
off fan running
orange on fan failure
O Battery
off battery running
orange on battery failure
P
Memory
module
orange on at least one memory module faulty
1 Serial connector COM1
2 Video connector (VGA)
3 Mangagement LAN connector
4 Standard LAN connector (LAN1)
5 4 USB connectors (black)
6 Shared LAN connector (LAN2)
Indicator Status Description
