152 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
Hard disk drives / solid state drives
7.3 3.5-inch HDD configurations
7.3.1 4x 3.5-inch HDD configuration
7.3.1.1 Mounting order

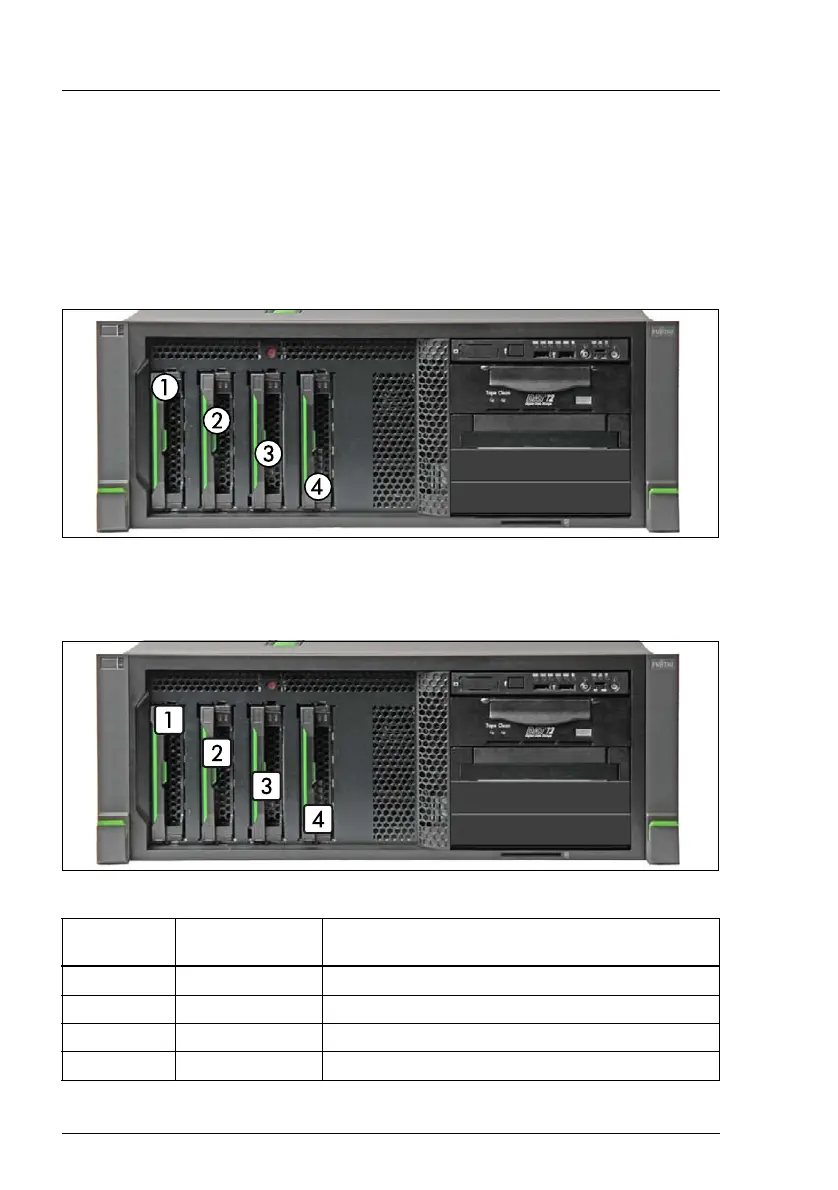

Figure 75: Mounting order with up to 4 3.5-inch HDDs (1 SAS backplane)
7.3.1.2 HDD / SSD naming scheme
Figure 76: Naming scheme with 4 3.5-inch HDDs (1 SAS backplane)
Position
Logical drive
number
ServerView RAID Manager display name
[1] 0 HDD vendor name (0)
[2] 1 HDD vendor name (1)
[3] 2 HDD vendor name (2)
[4] 3 HDD vendor name (3)
