414 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7

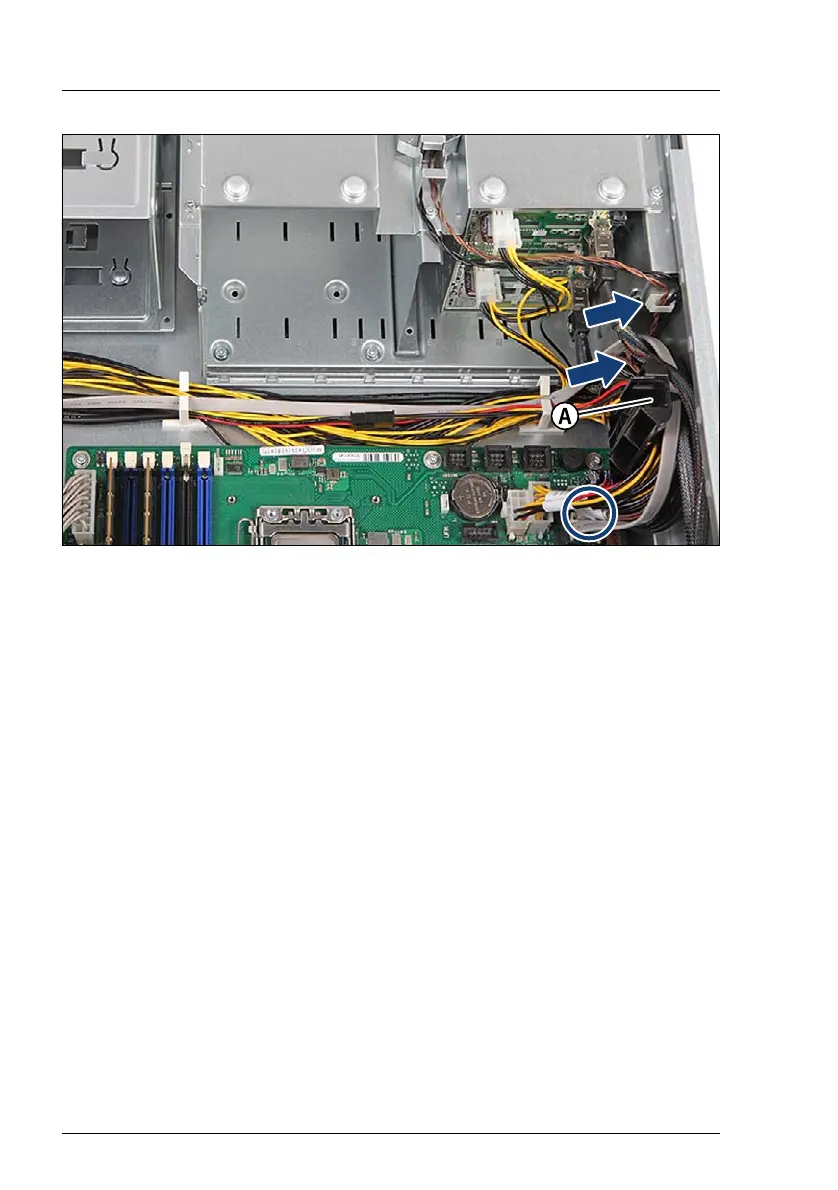

Figure 326: Connecting the intrusion switch cable
Ê Run the intrusion switch cable through the cable clamps (see arrows) on the
HDD cage and the cable guide (A).
Ê Connect the intrusion switch cable to the system board connector
"INTRUSION" (see circle).
16.3.4 Concluding steps
Ê "Installing the system fan holder" on page 77
Ê "Reassembling" on page 64
Ê "Connecting the server to the mains" on page 74
Ê "Switching on the server" on page 75
