158 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
Hard disk drives / solid state drives

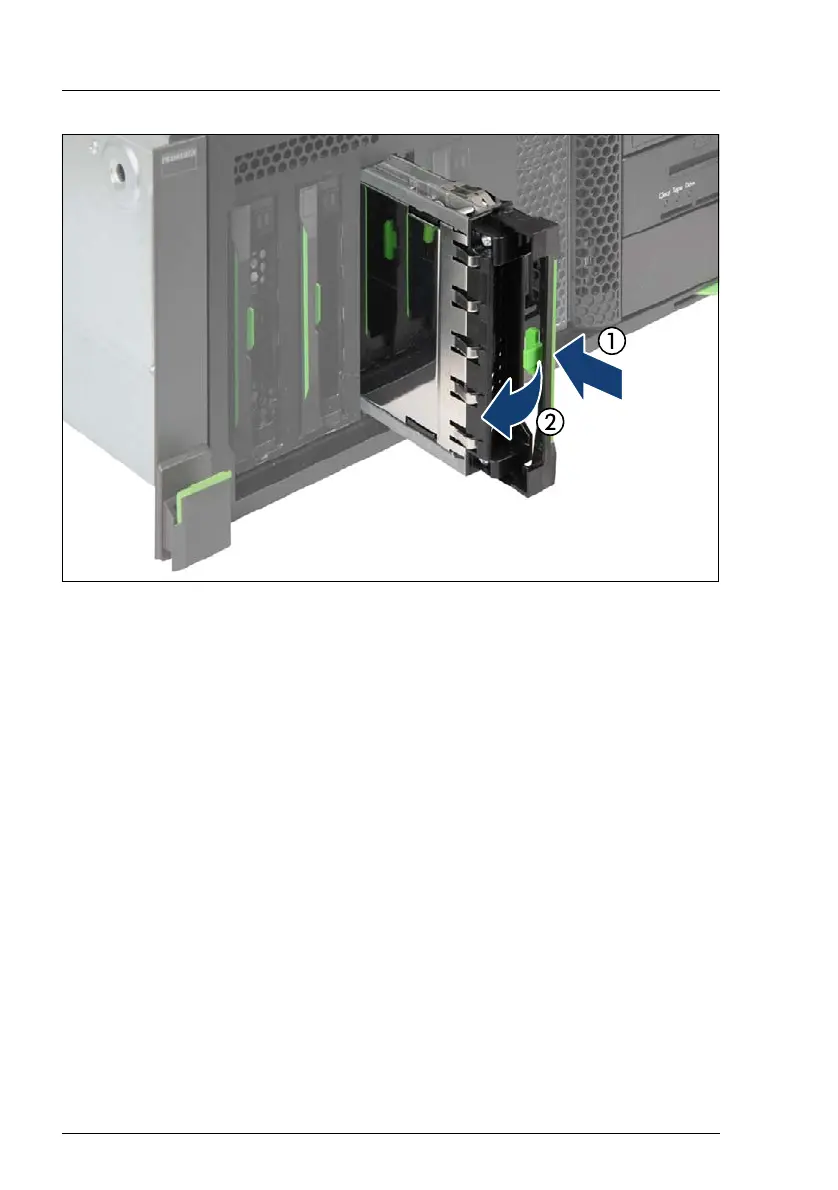

Figure 85: Inserting the 3.5-inch HDD module
Ê Insert the HDD module into a drive bay and carefully push back as far as it
will go (1).
Ê Fold down the lever to lock the HDD module in place (2).
7.3.4.4 Concluding steps
Ê "Installing accessible drive and HDD bay covers" on page 71
Ê "Performing a RAID array rebuild" on page 101
