TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 121
V CAUTION!
Keep the dummy cover for future use. If a hot-plug PSU is removed
and not immediately replaced by a new one, a PSU dummy cover
must be reinstalled in the bay to comply with applicable EMC
regulations and satisfy cooling requirements.
6.3.1.3 Installing a hot-plug PSU

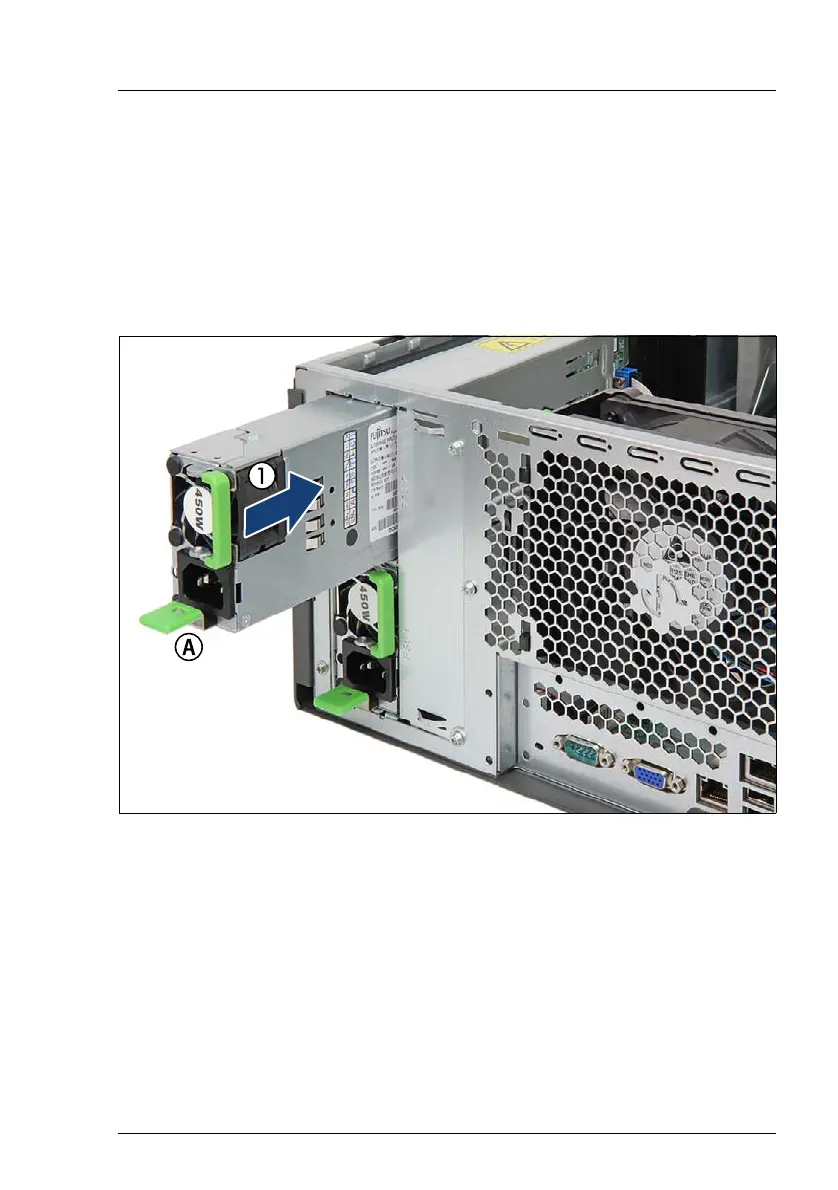

Figure 50: Installing a hot-plug PSU
Ê Push the hot-plug PSU into its bay (1) as far as it will go until the release
latch snaps in place (A).
Ê If applicable, fold down the handle on the hot-plug PSU.
6.3.1.4 Concluding steps
Ê "Connecting the server to the mains" on page 74
