TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 235
Expansion cards and backup units
9.5.4.3 Removing the BBU from the holder

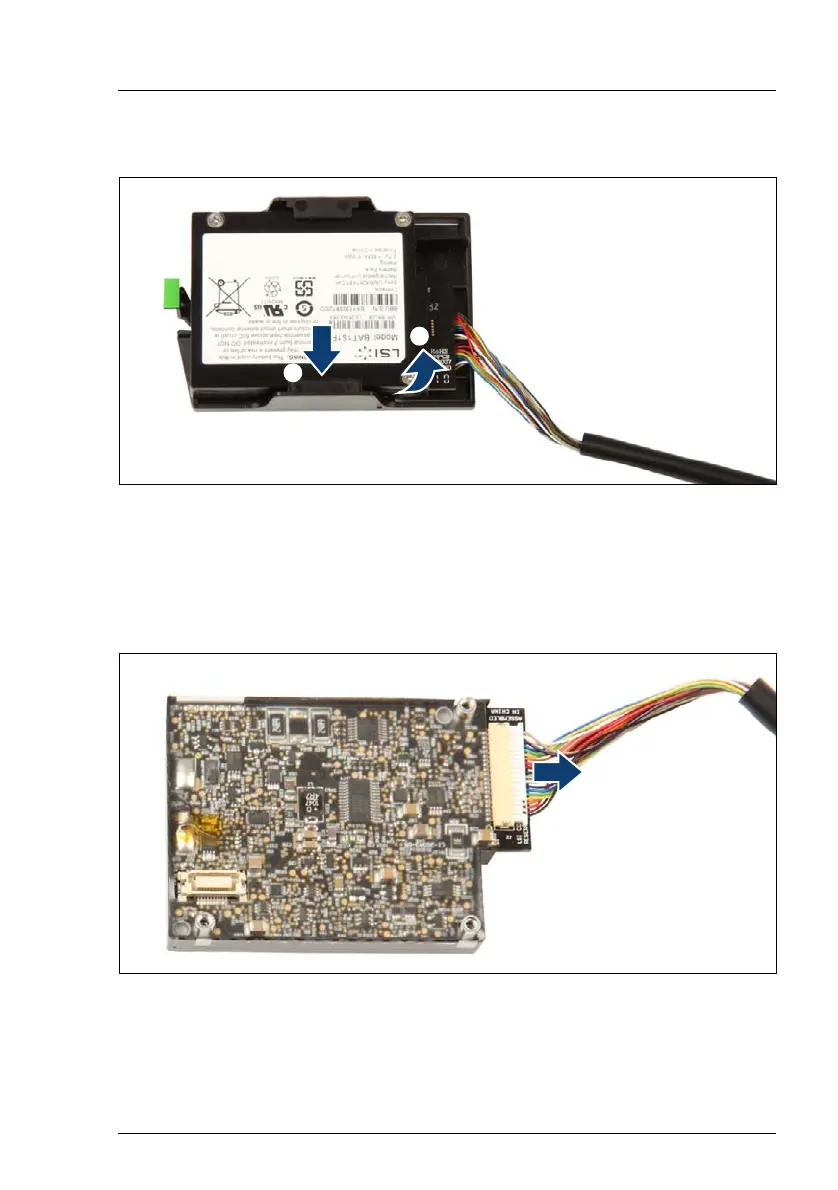

Figure 162: Removing the BBU from the holder
Ê Press out on the retaining bracket on the holder (1), lift the battery at the
bottom side and remove the BBU at a slight angle out of the holder (2).
9.5.4.4 Disconnecting the BBU cable from the BBU
Figure 163: Disconnecting the BBU cable from the BBU
Ê Disconnect the BBU cable from the BBU.
/
