TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 181
Hard disk drives / solid state drives
7.4.3.3 Installing accessible drive dummy covers
Installing accessible drive filler covers

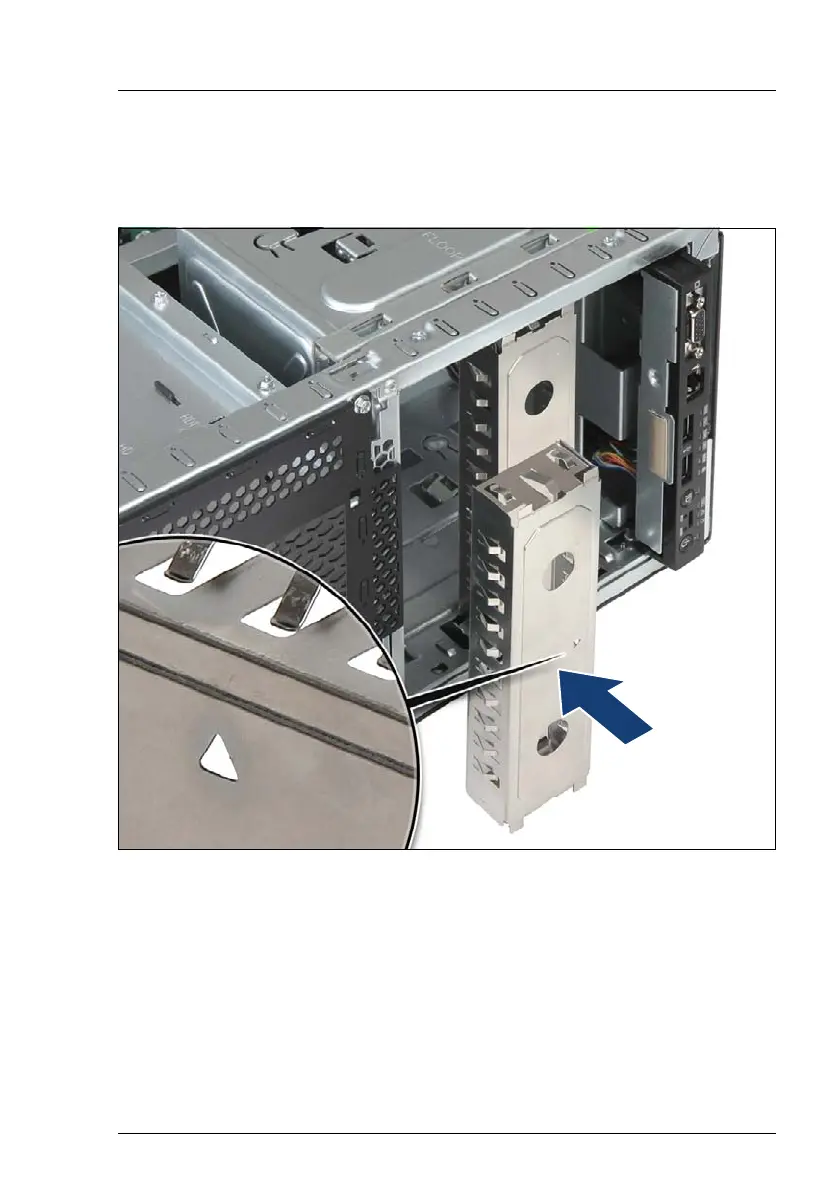

Figure 111: Installing an accessible drive filler cover
Ê Hold the accessible drive filler cover by its two handle recesses and insert it
into the empty installation bays with the punched-out arrow symbol facing up
(see close-up).
V CAUTION!
Always replace filler covers into unused drive bays to comply with
applicable EMC regulations and satisfy cooling requirements.
