180 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
Hard disk drives / solid state drives

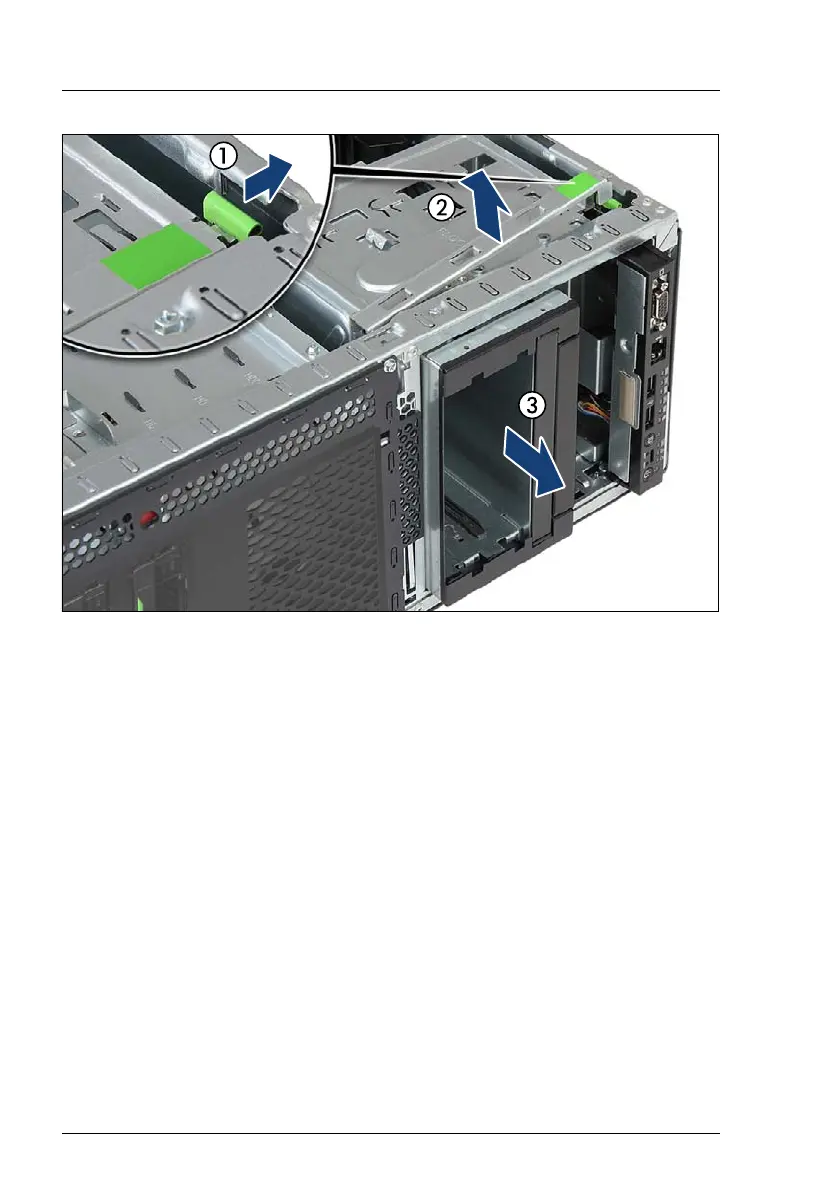

Figure 110: Removing the HDD extension box
Ê Press out on the locking latch to disengage the accessible drive locking bar
(1).
Ê Fold up the accessible drive locking bar (2).
Ê Carefully pull the HDD extension box out of its installation bays (3).
Ê Close the accessible drive locking bar until it locks in place.
