TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 59
Basic hardware procedures
4.4.2.2 Removing the side cover

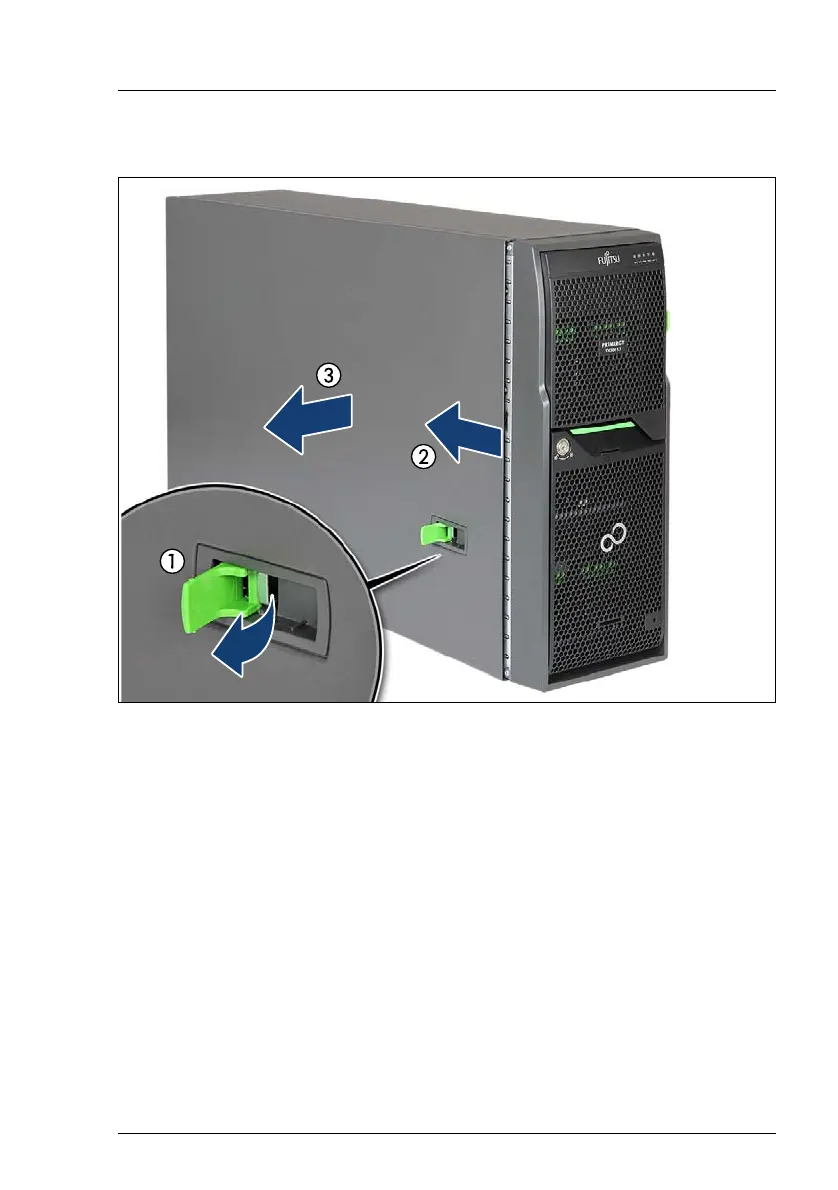

Figure 11: Removing the side cover (tower server)
Ê Open the locking lever (1). This will slide the side cover back disengaging
the locking mechanism (2).
Ê Remove the side cover (3).
