Fujitsu PRIMERGY TX150 S8 User Manual

TX150 S8 / TX200 S7 Upgrade and Maintenance Manual 173
Hard disk drives / solid state drives
7.4.2.2 Removing accessible drive dummy covers
Removing accessible drive filler covers

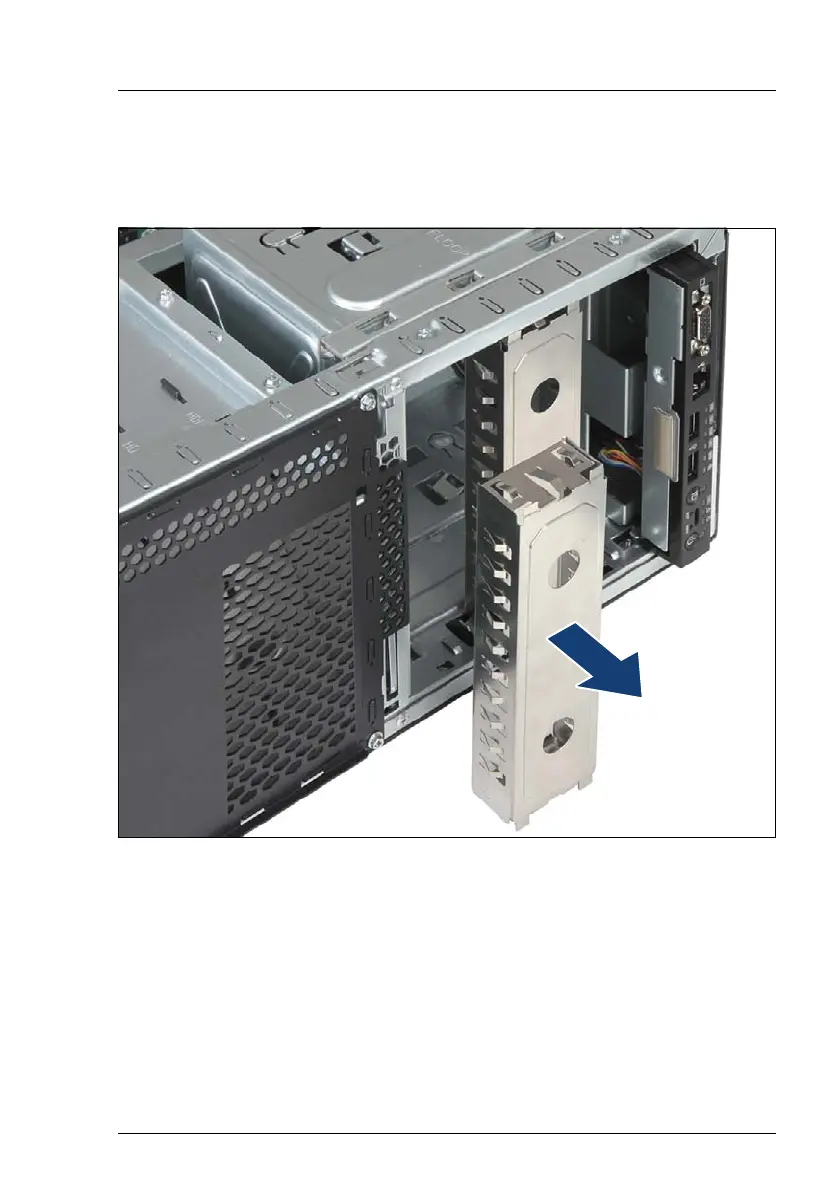

Figure 103: Removing an accessible drive filler cover
Ê Hold the accessible drive filler cover by its two handle recesses and pull it
out of the desired installation bays.
V CAUTION!
Always replace filler covers into unused drive bays to comply with
applicable EMC regulations and satisfy cooling requirements.

Fujitsu PRIMERGY TX150 S8 Specifications

General

Form Factor	Tower
Processor Sockets	1
Chipset	Intel C226
Memory Slots	4
Operating System Support	Windows Server, Linux
Processor	Intel Xeon E3-1200 v3/v4
Memory	Up to 32 GB DDR3
Storage	Up to 4 x 3.5-inch
RAID Support	RAID 0, 1, 10
Network Interface	2 x 1 GbE LAN
Expansion Slots	1 x PCI
