TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 421
17.2.1.2 Onboard indicators and controls

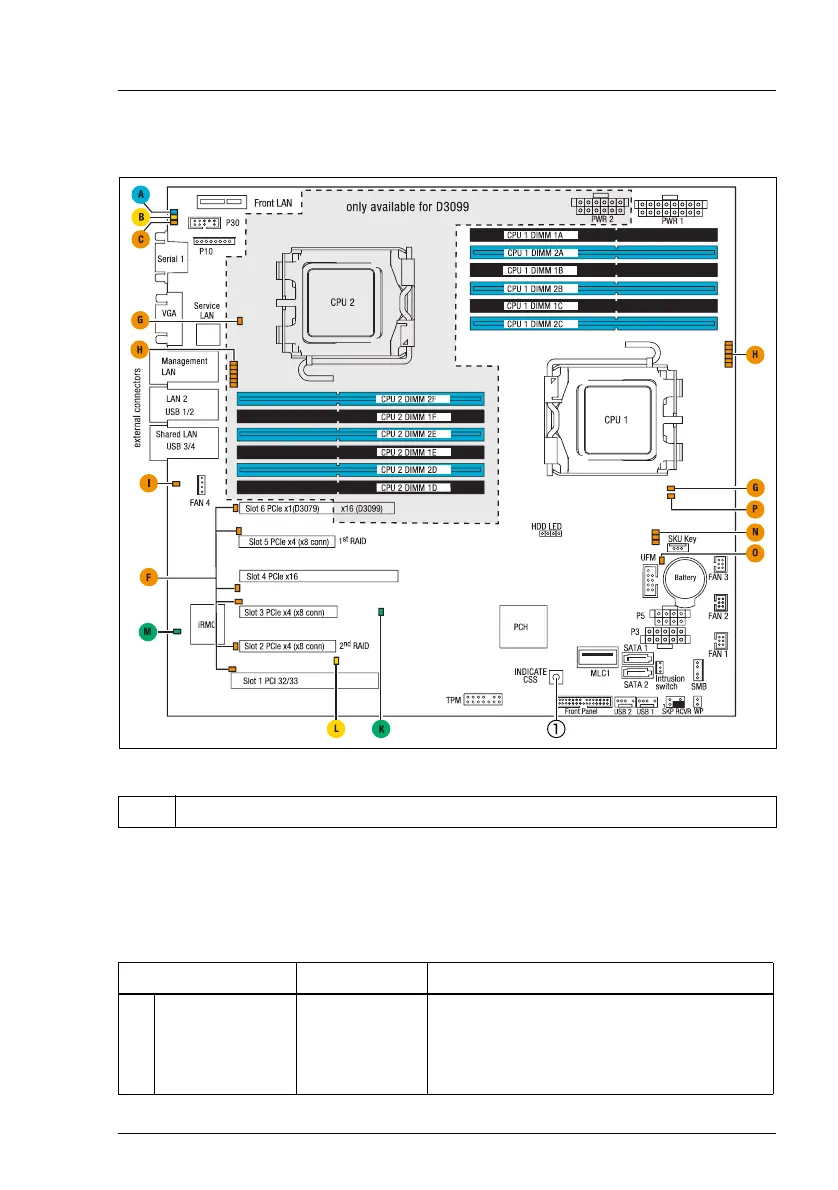

Figure 332: Onboard indicators and Indicate CSS button
Component LEDs
I LEDs A, B and C are visible from the outside on the server rear. All other
LEDs are only visible if the server cover has been opened.
1 Indicate CSS button
Indicator Status Description
A ID indicator blue on
server has been highlighted using
ServerView Operations Manager or the
ID button on the front panel for easy
identification
