4.6 Connecting the server to the mains
V CAUTION!
The server supports a mains voltage in the range of 100 VAC to
240 VAC. You may only operate the server if its rated voltage range
corresponds to the local mains voltage.
Ê Connect the power cords to the power supply units.
Ê Connect the mains plugs to grounded mains outlets in the in-house power
supply network or power outlets of the rack socket strip.
I To provide true phase redundancy, the second power supply should
be connected to a different AC power source from the other supply. If
one AC power source should fail, the server will still continue to run.
Securing power cords

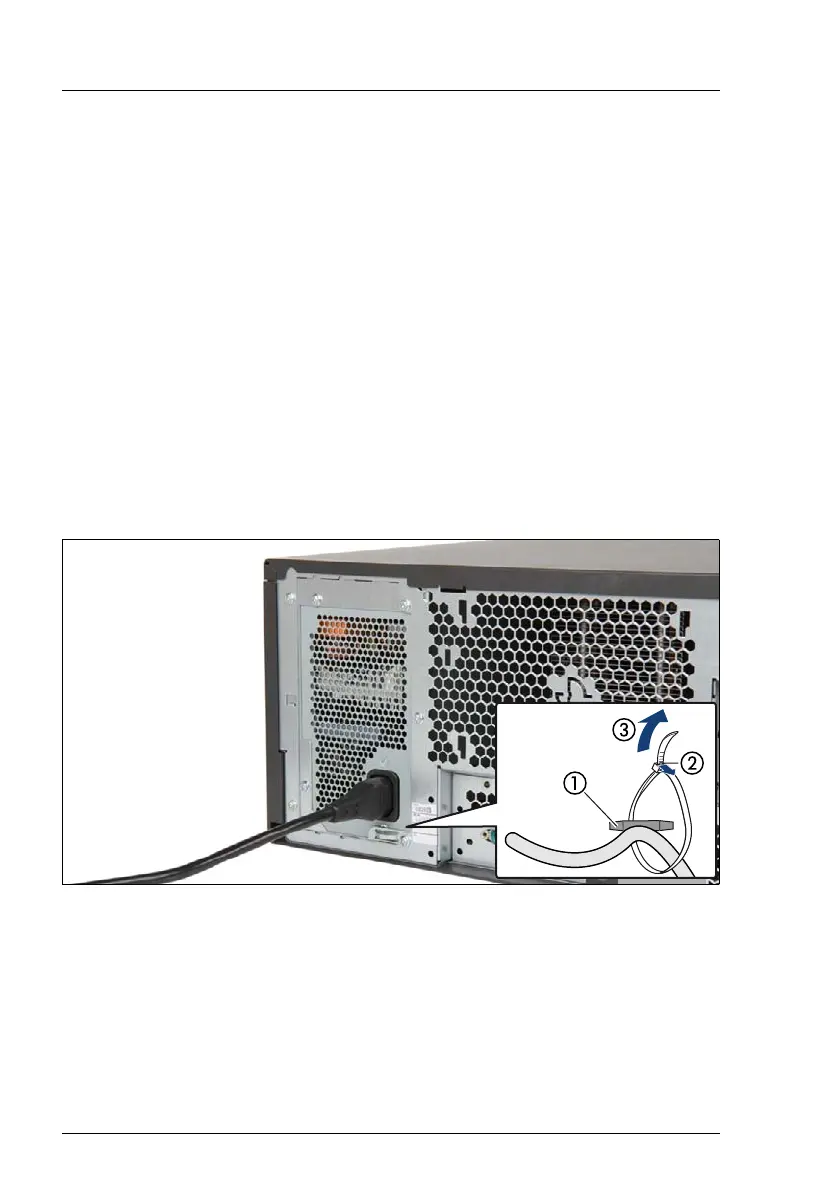

Figure 29: Securing power cord
Ê Loop the cable past the cable tie mounting bracket as shown (1).
Ê Close the cable tie around the power cord (2) and pull tight (3) to secure the
power cord.
