9.4.2.2 Removing an expansion card
Ê If applicable, disconnect internal cables from the expansion card.

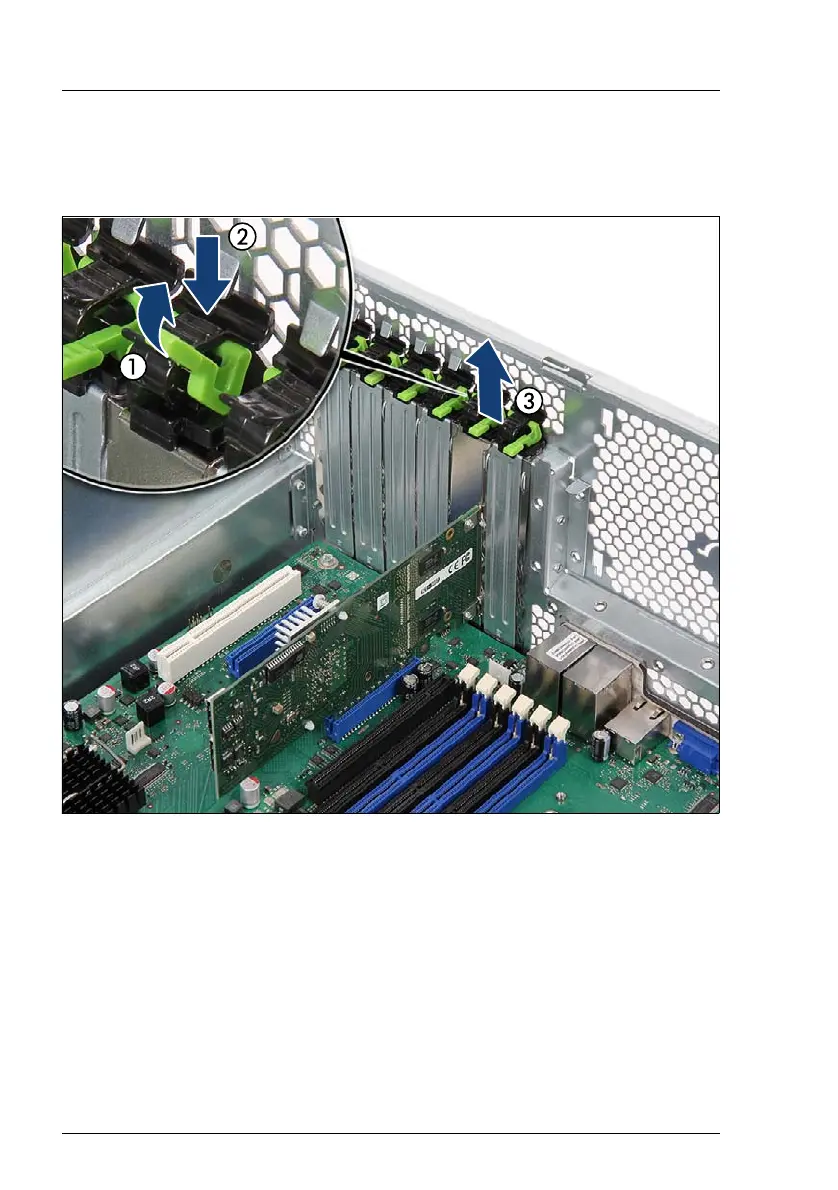

Figure 145: Removing the expansion card (A)
Ê If applicable, remove SFP+ transceiver modules "Removing an SFP+
transceiver module" on page 208.
Ê Fold up the locking handle on the slot bracket clamp (1, see close-up).
Ê Press down on the slot bracket clamp to disengage it (2, see close-up).
Ê Remove the slot bracket clamp (3).
