70 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
Basic hardware procedures
4.5.3 Tower model
4.5.3.1 Installing the front cover

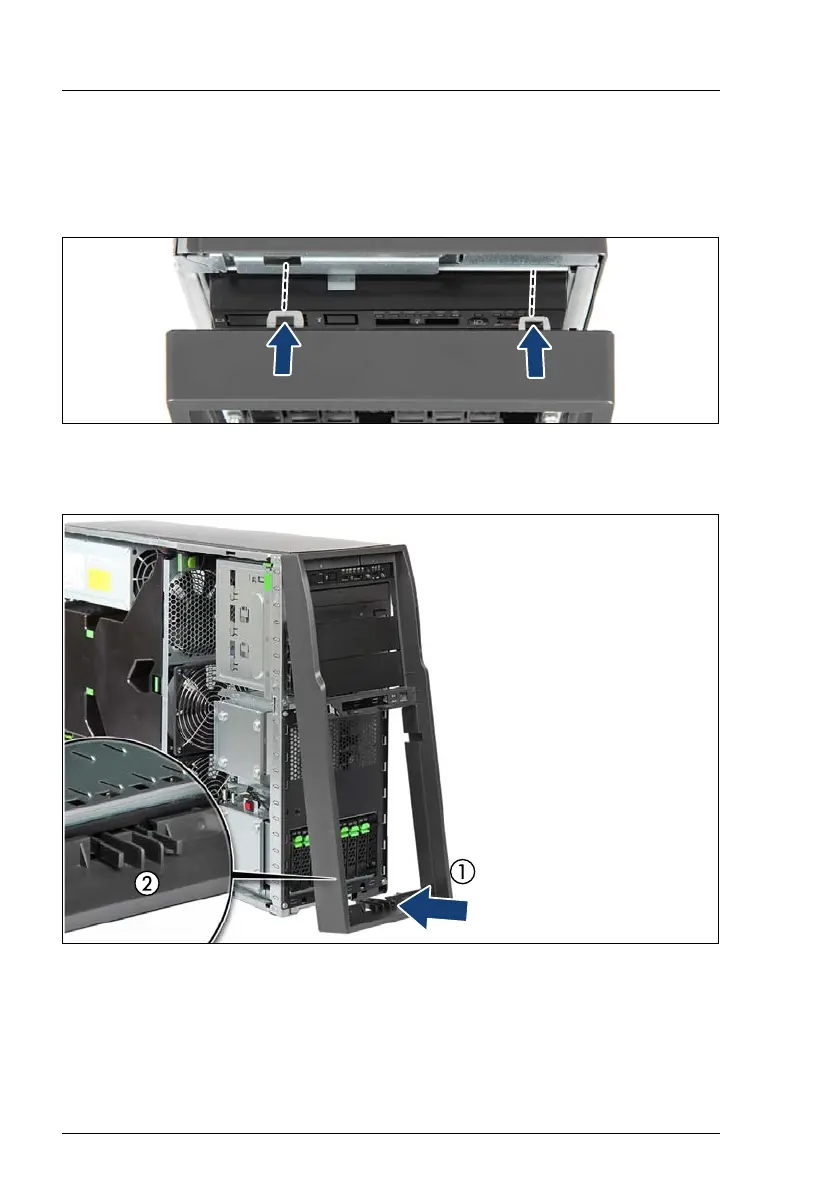

Figure 22: Installing the front cover (tower server) (A)
Ê Hook the two tabs of the front cover into the notches in the chassis.
Figure 23: Installing the front cover (tower server) (B)
Ê Fold down the front cover (1) until the locking clip on the bottom edge
engage (2).
Ê Insert and slide the ID card into its slot until it locks in place (see figure 14
on page 61.)
