312
Upgrade and Maintenanc
e Manual
TX150 S8 / TX200 S7
Accessible drives and LSD
12.6.2.3
Removing the LSD

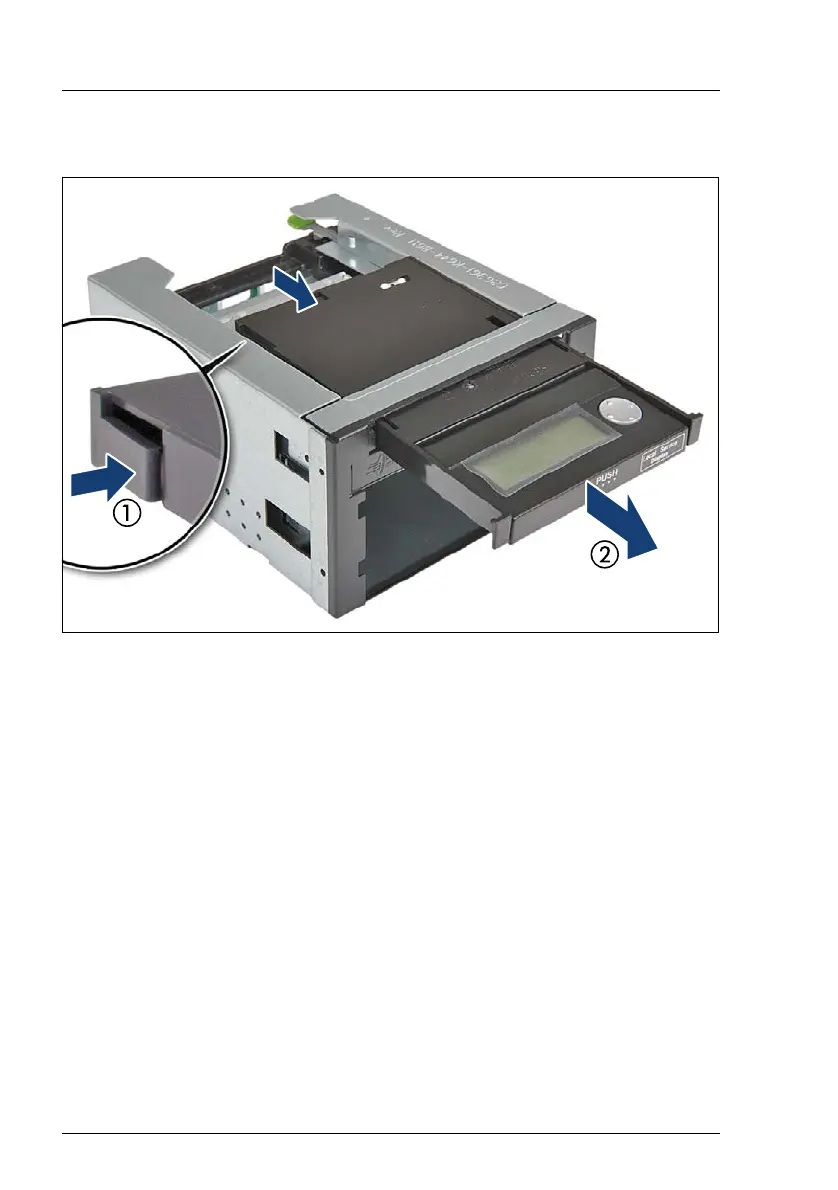

Figure 231: Removing the LSD module
Ê
From the rear side of the extension box, press in on the locking latch (see
close-up) to disengage the LSD module (1).
Ê
From inside the HDD extension box, press out
on the LSD module and pull
it out of its bay (2).
