TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 313
Accessible drives and LSD

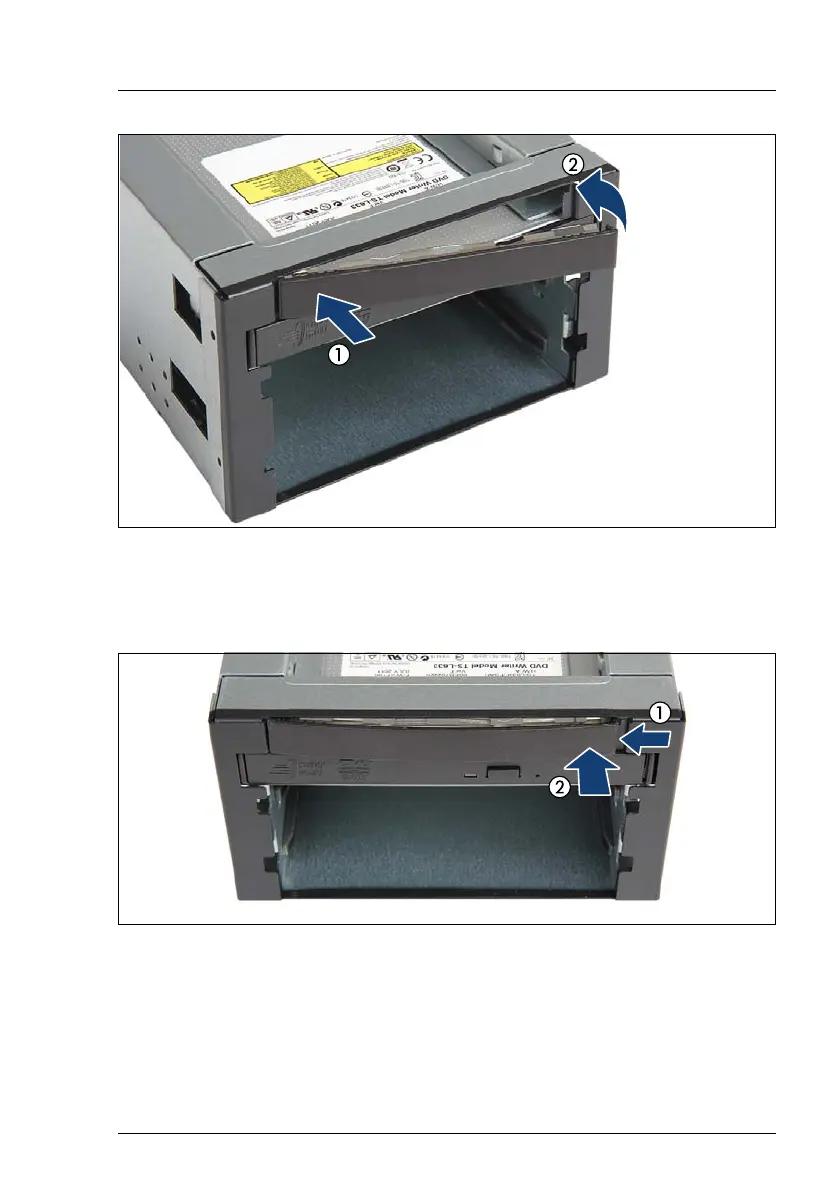

Figure 232: Removing the slimline ODD from its installation frame
Ê Fit one edge of the LSD dummy cover plate into the LSD slot (1) as shown.
Ê Fold in the dummy cover plate (2).
Figure 233: Mounting the slimline ODD dummy insert in the installation frame
Ê Carefully bend out the LSD dummy cover plate (1) and fit its other edge into
the LSD slot (2).
