TX150 S8 / TX200 S7

Upgrade and Maintenance Manual 419

Appendix

17.2 Connectors and indicators

17.2.1 Connectors and indicators on the system board

17.2.1.1 Onboard connectors

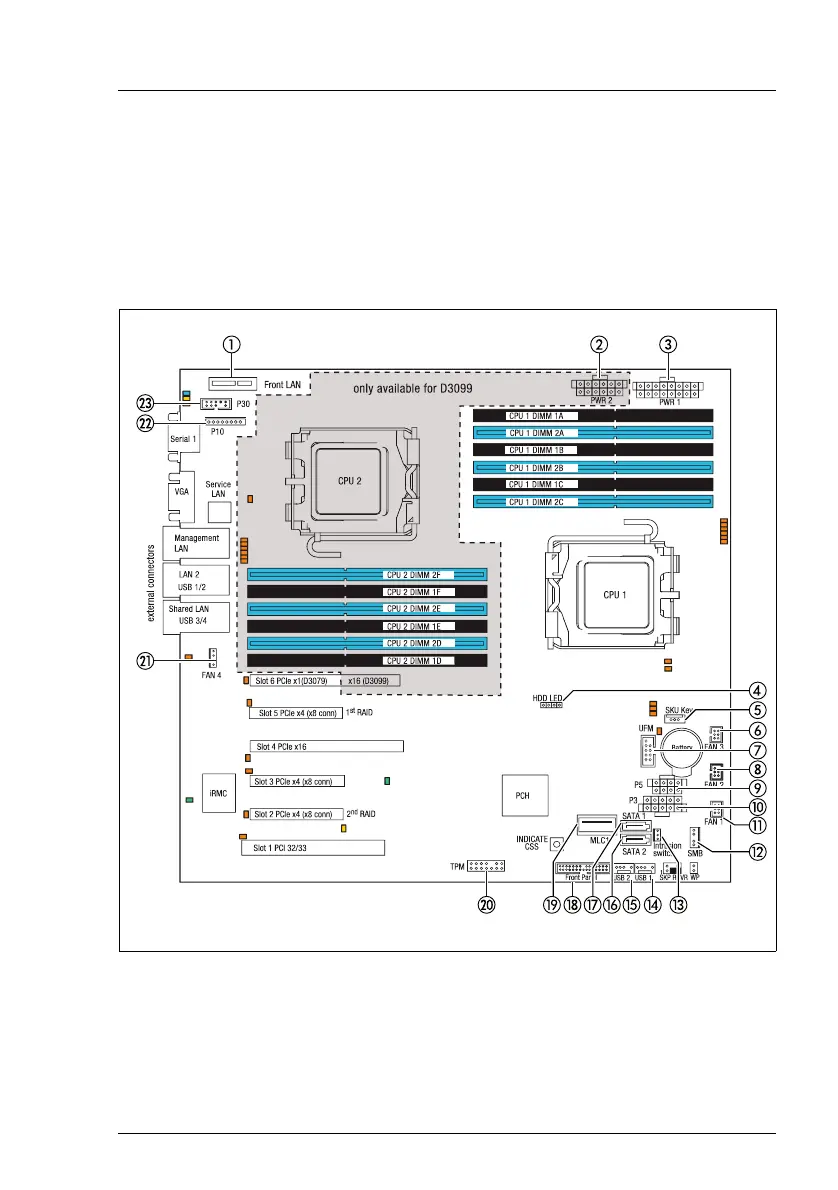

Figure 331: Internal connectors of system board D3079 (TX150 S8) / D3099 (TX200 S7)
