TX150 S8 / TX200 S7

Upgrade and Maintenance Manual 143

Hard disk drives / solid state drives

7.2.3.3 Installing a 2.5-inch HDD / SSD module

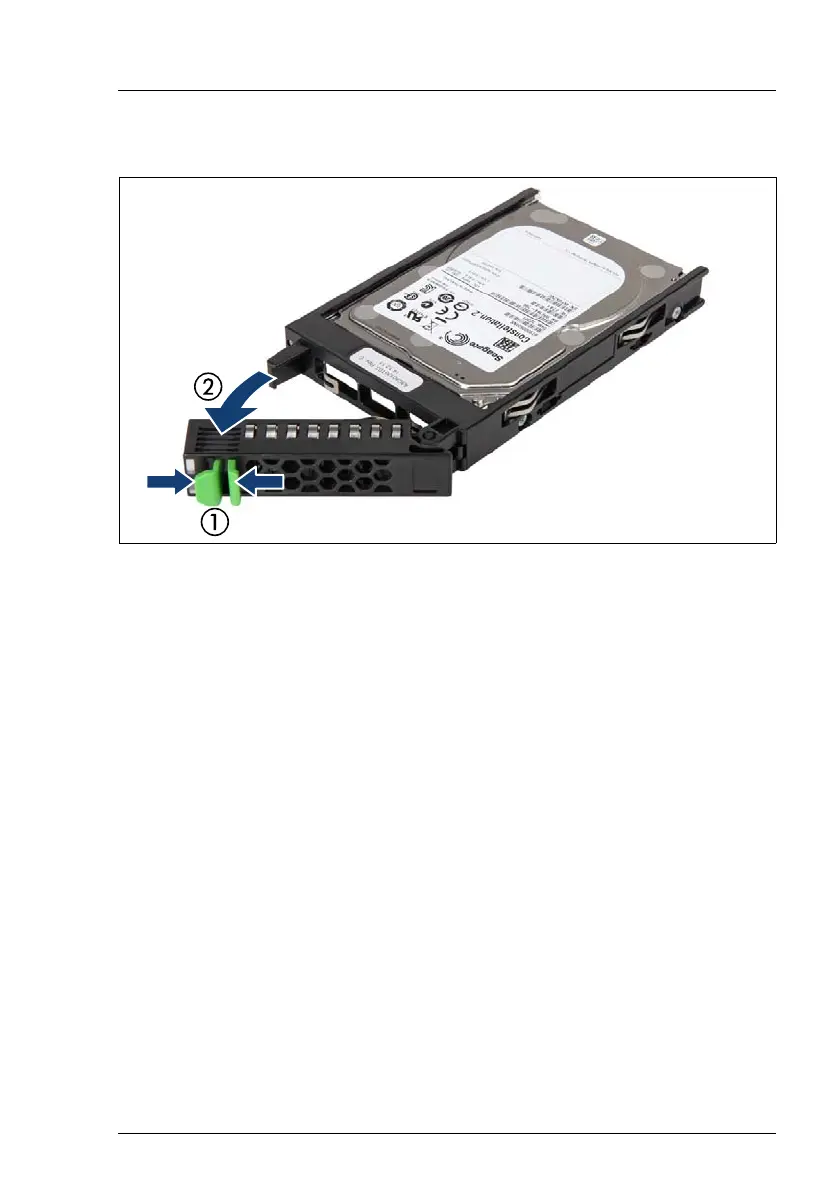

Figure 68: Opening the 2.5-inch HDD / SSD module locking lever

Ê Pinch the green locking clips (1) and open the locking lever (2).
