124 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
6.3.2.3 Installing a PSU dummy cover

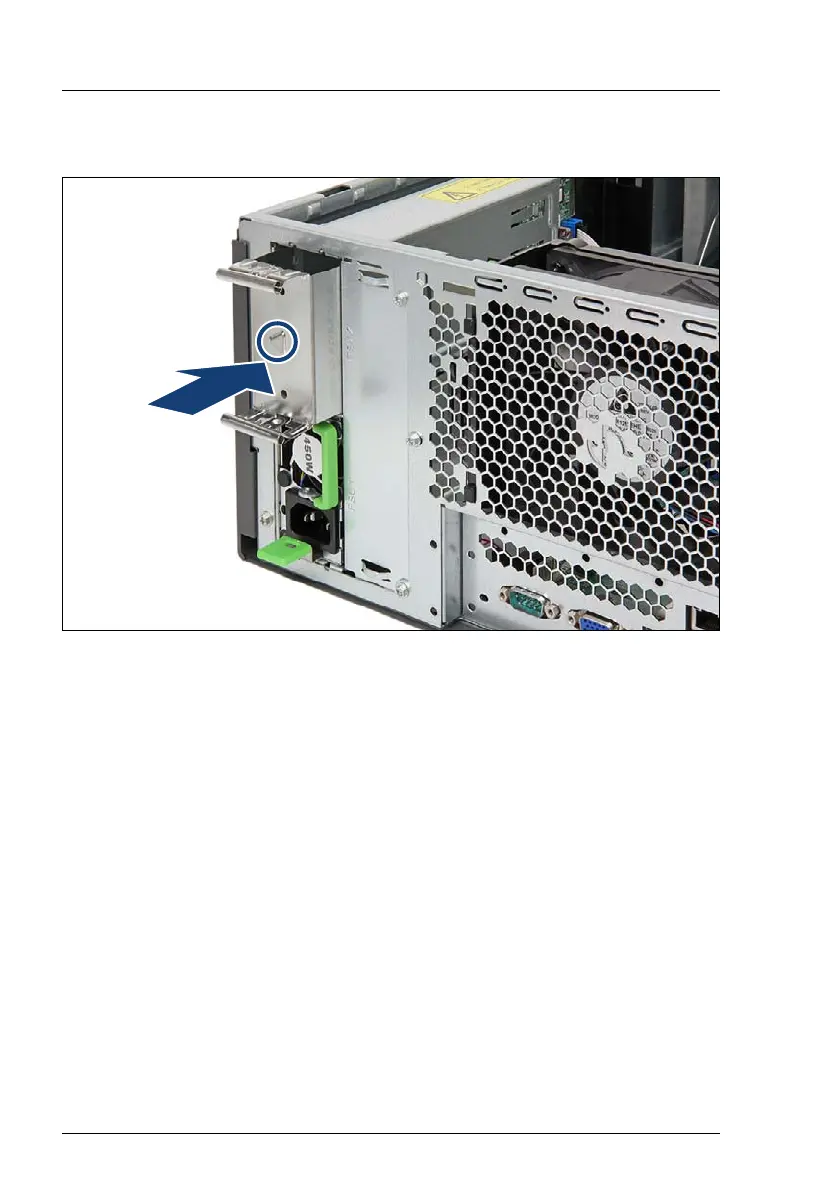

Figure 52: Installing a PSU dummy cover
Ê Insert the PSU dummy cover into the empty PSU bay with the impressed
arrow symbol facing to the left (see circle).
Ê Push the PSU dummy cover into its bay until it locks in place.
V CAUTION!
Always install dummy covers into unused PSU bays to comply with
applicable EMC regulations and satisfy cooling requirements.
