Fujitsu PRIMERGY TX150 S8 - Removing the Defective SAS Backplane

150 Upgrade and Maintenance Manual TX150 S8 / TX200 S7
Hard disk drives / solid state drives
7.2.6.2 Removing the defective SAS backplane

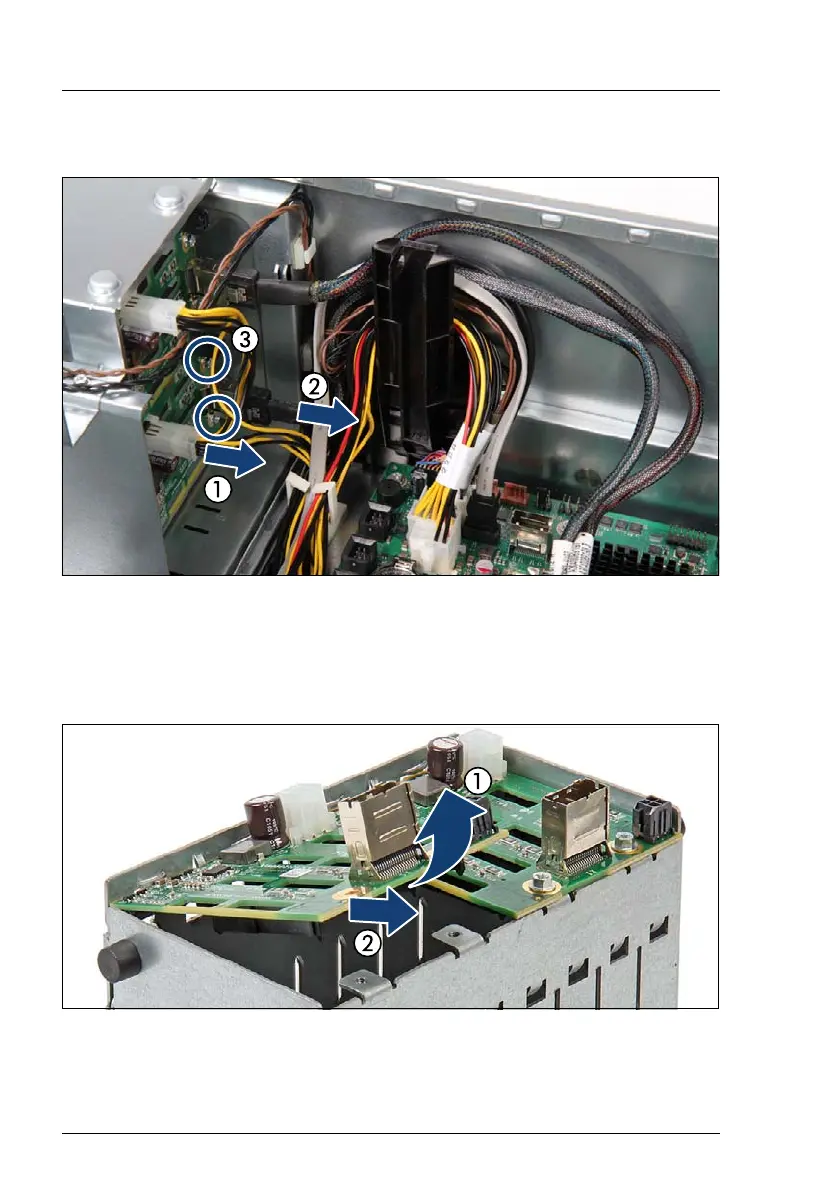

Figure 72: Disconnecting cables
Ê Disconnect the power cable (1) and the SAS cable (2) from the SAS
backplane.
Ê Remove the two screws (3, see circles).
Figure 73: Removing the 2.5-inch HDD SAS backplane
Ê Lift up the SAS backplane (1) and at a slight angle, remove it from the guides
on the HDD cage (2).
