TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 153
Hard disk drives / solid state drives
7.3.2 6x 3.5-inch HDD configuration
I This configuration requires the 2x 3.5-inch HDD extension box (see
section "HDD extension boxes" on page 169.
7.3.2.1 Mounting order

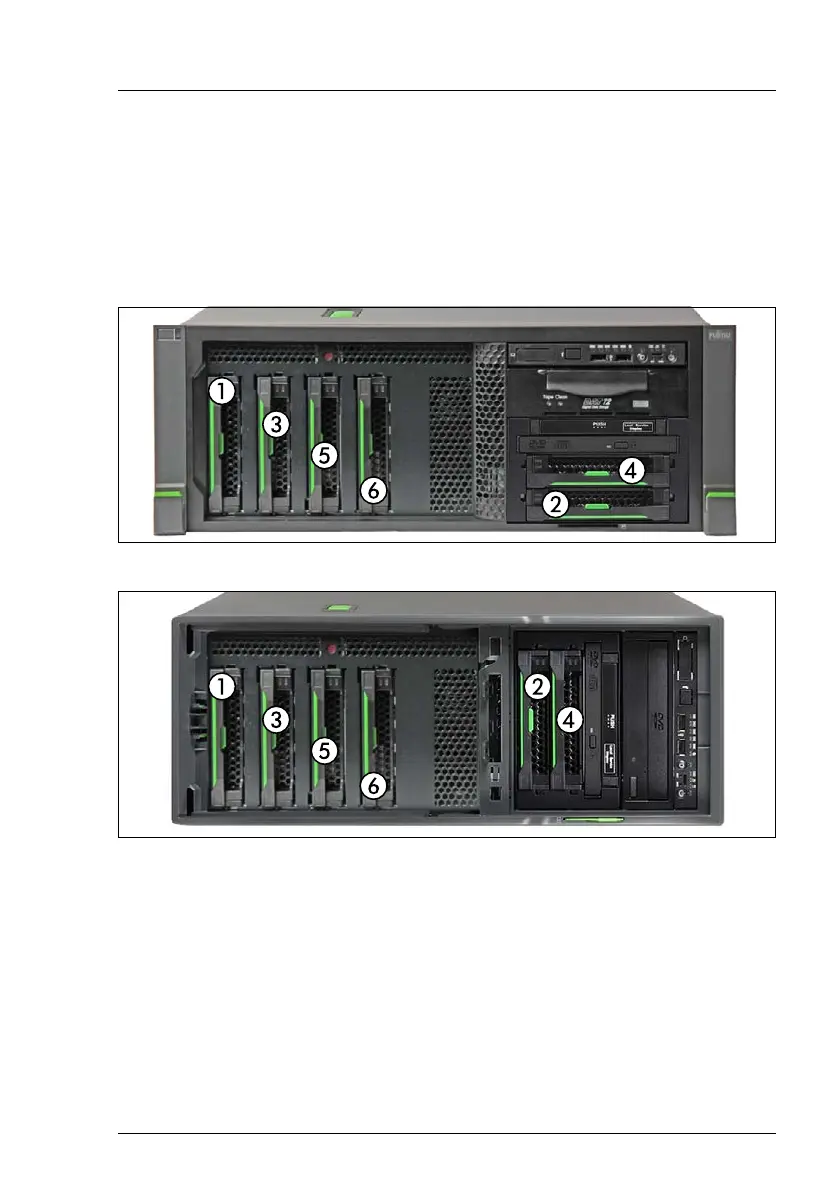

Figure 77: Mounting order with up to 6 3.5-inch HDDs (2 SAS backplanes) - Rack version
Figure 78: Mounting order with up to 6 3.5-inch HDDs (2 SAS backplanes) - Tower version
