TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 189
Ê "Performing a fan test after replacing a defective fan" on page 106
8.3 Rear fan
8.3.1 Installing the rear fan
8.3.1.1 Preliminary steps
Ê "Shutting down the server" on page 50
Ê "Disconnecting the server from the mains" on page 50
Ê "Getting access to the component" on page 51
8.3.1.2 Installing the rear fan

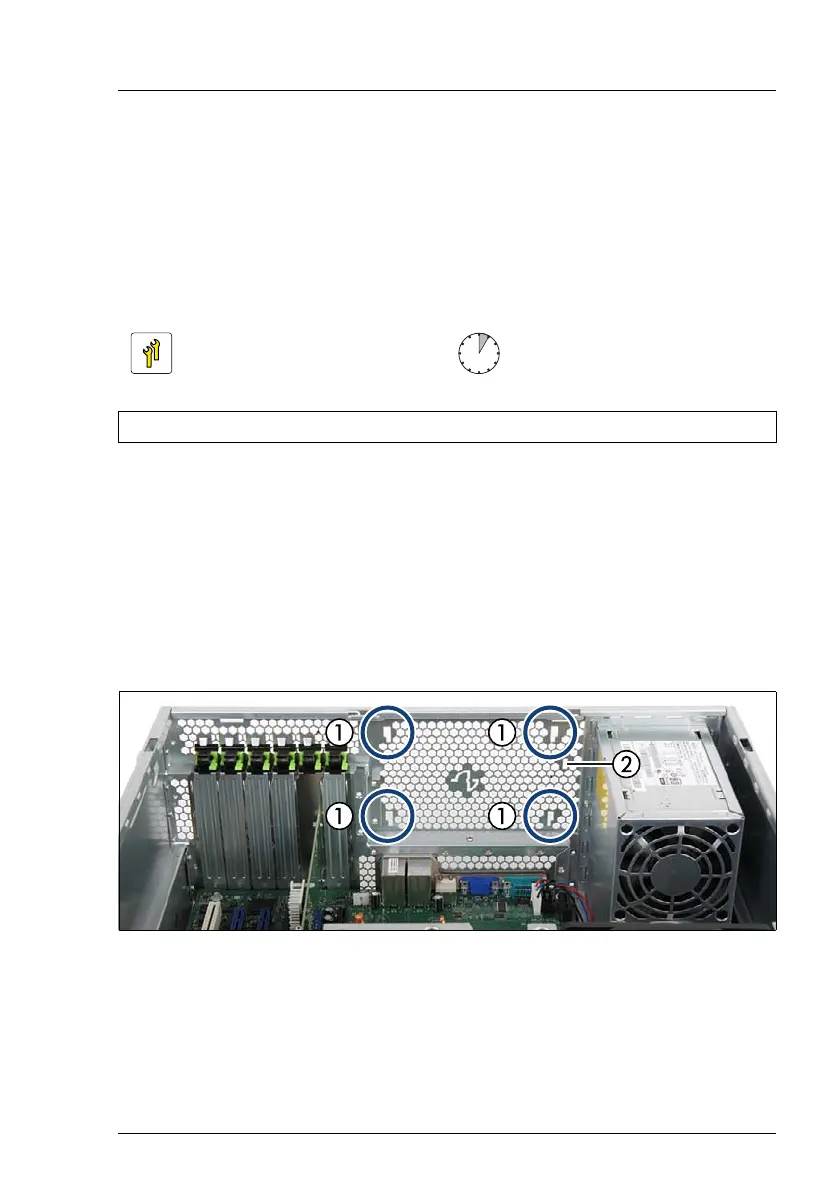

Figure 116: Rear fan - slots in the chassis
Ê Note the four slots in the chassis for installing the rear fan (1) and the slot for
the latch on the locking lever (2).
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: tool-less
