190 Upgrade and Maintenance Manual

TX150 S8 / TX200 S7

Fans

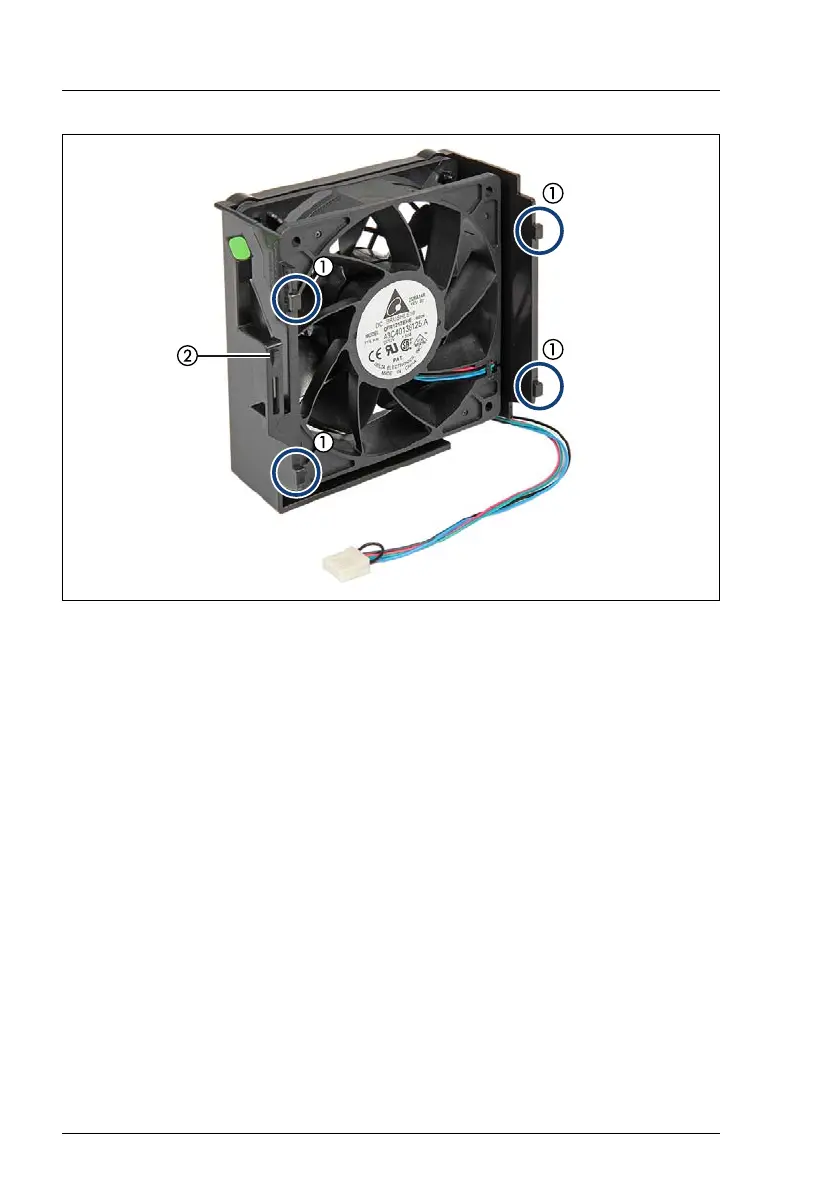

Figure 117: Rear fan - hooks

Ê Note the four hooks on the rear fan (1) and the slot for the latch on the

locking lever (2).
