TX150 S8 / TX200 S7
Upgrade and Maintenance Manual
191
Fans

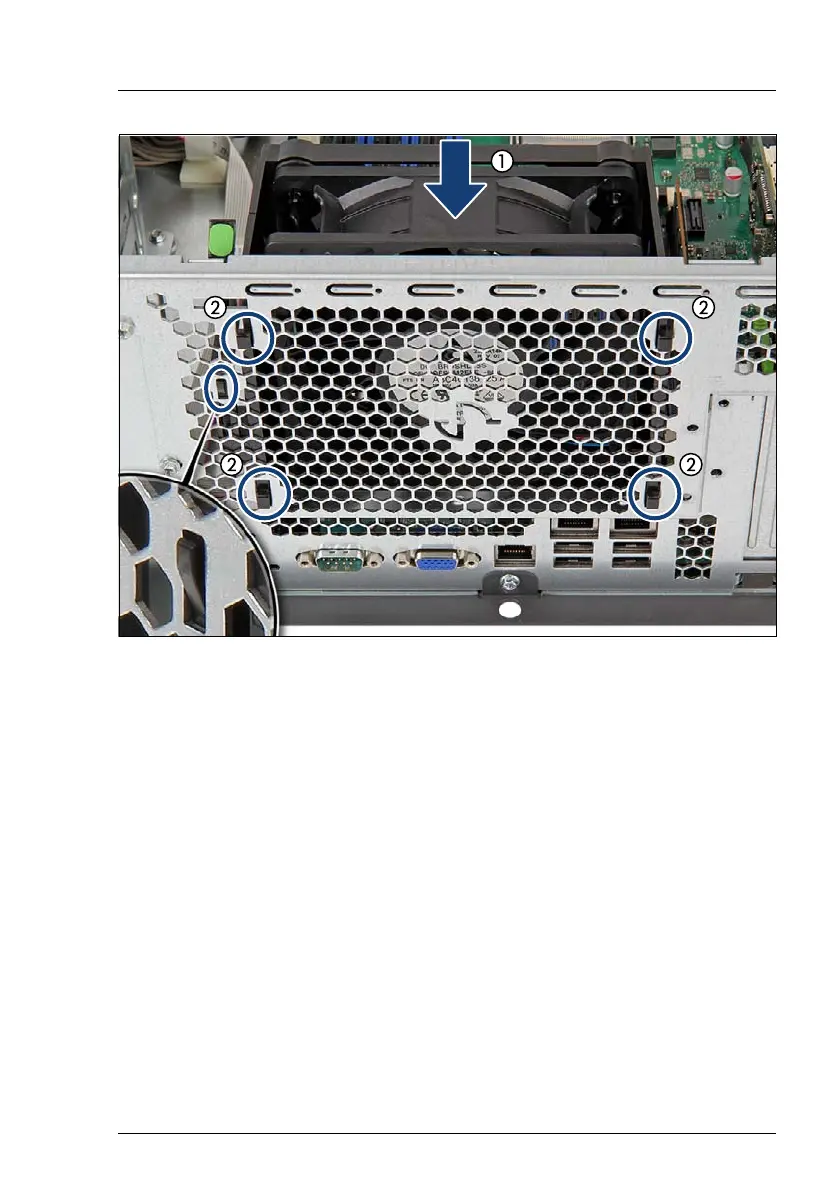

Figure 1
18: Installing the rear
fan
Ê
Insert the rear fan (1) and fit the four hooks on the fan into the slots (2).
Ê
Press down the rear fan until the
latch on the locking lever properly engages
in the slot on the server rear (see close-up)
.
Ê
Ensure that the rear fan is properly seated in the chassis.
