154 Upgrade and Maintenance Manual TX150 S8 / TX200 S7
Hard disk drives / solid state drives
7.3.2.2 HDD / SSD naming scheme
Figure 79: Naming scheme with 10 3.5-inch HDDs (2 SAS backplanes) - Rack version
7.3.3 8x 3.5-inch HDD configuration
I This configuration requires the 4x 3.5-inch HDD extension box (see
section "HDD extension boxes" on page 169.
7.3.3.1 Mounting order

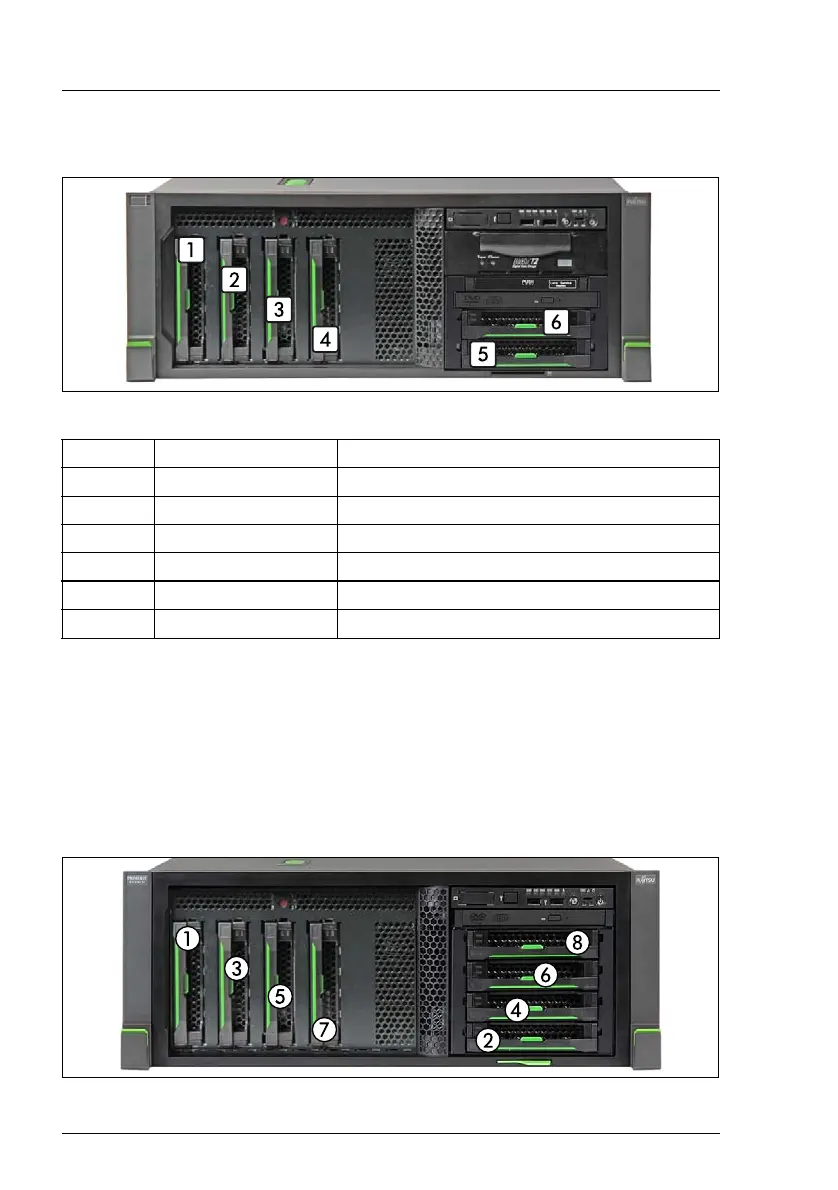

Figure 80: Mounting order with up to 8 3.5-inch HDDs (2 SAS backplanes) - Rack version
Position Logical drive number ServerView RAID Manager display name
[1] 0 HDD vendor name (1:0)
[2] 1 HDD vendor name (1:1)
[3] 2 HDD vendor name (1:2)
[4] 3 HDD vendor name (1:3)
[5] 4 HDD vendor name (1:4)
[6] 5 HDD vendor name (1:5)
