TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 345
Front panel and external connectors

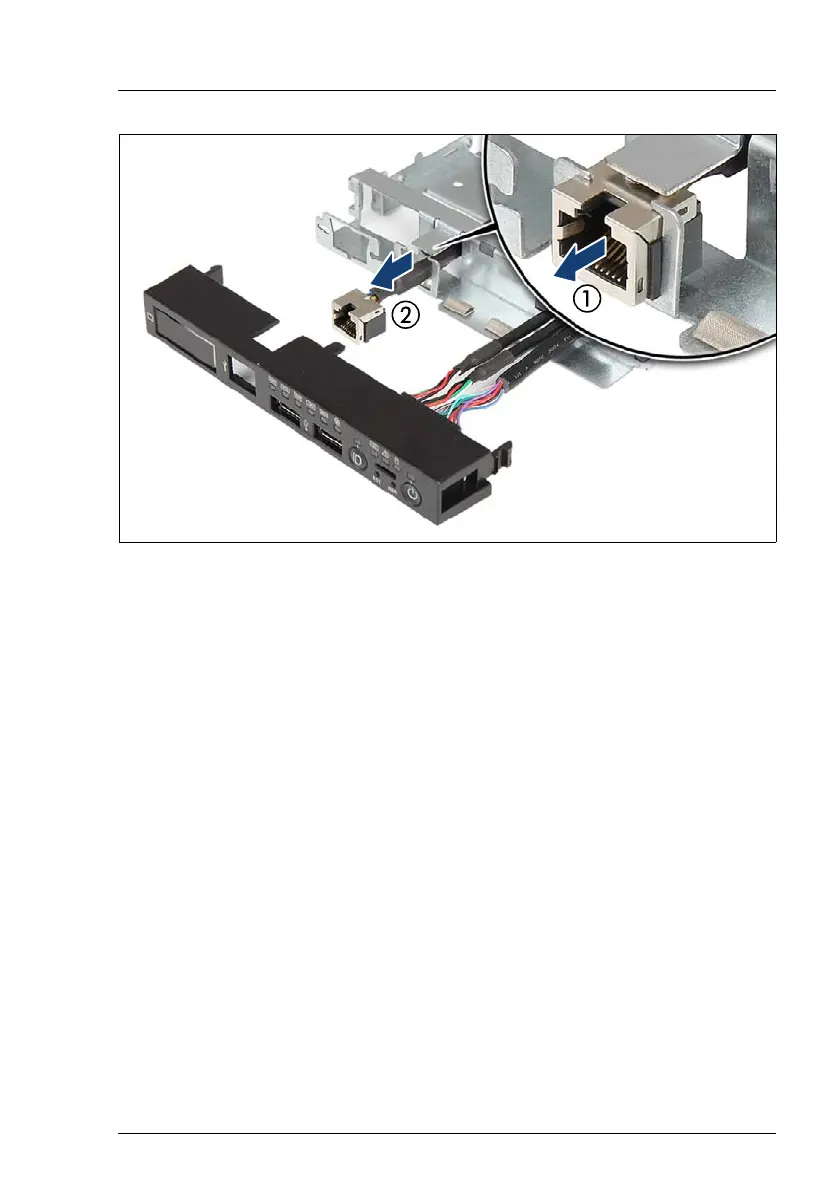

Figure 263: Removing the front panel connector
Ê Carefully unlatch the front LAN cable connector from the mounting bracket
(1).
Ê Pull the front LAN cable out through the mounting bracket on the front panel
frame and remove it (2).
Ê Install the front panel module cover on the front panel frame as described in
section "Installing the front panel module cover" on page 335.
Ê Install the front panel module as described in section "Installing the front
panel module" on page 337.
13.2.2.3 Concluding steps
Ê "Installing the system fan holder" on page 77
Ê "Reassembling" on page 64
Ê "Connecting the server to the mains" on page 74
Ê "Switching on the server" on page 75
Ê "Enabling BitLocker functionality" on page 100
