Front panel and external connectors
Installing the front panel module cover

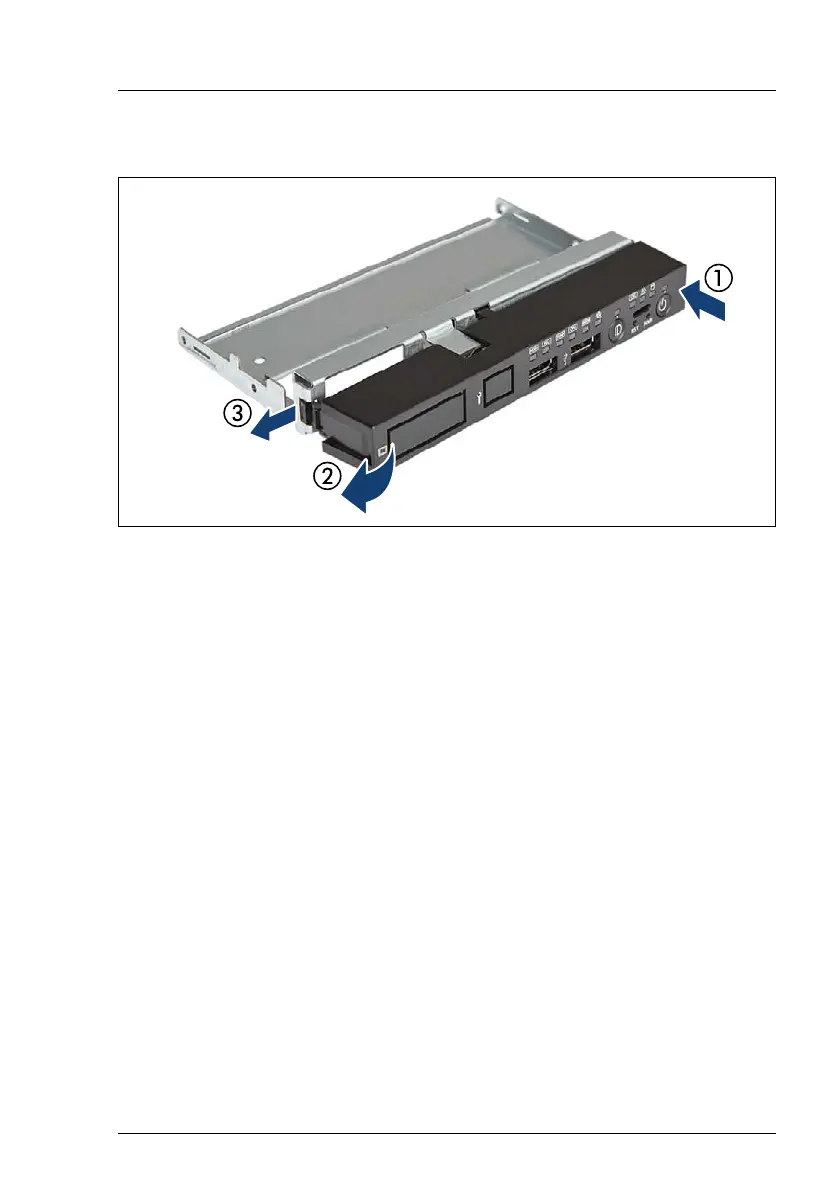

Figure 253: Installing the front panel module cover
Ê Hook the locking latch on the right side of the front panel module cover into
the front panel frame (1).
Ê Fold in the front panel module cover (2) until the left locking latch engages
with the front panel frame (3).
