TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 63
Basic hardware procedures
4.4.3 Removing the system air duct

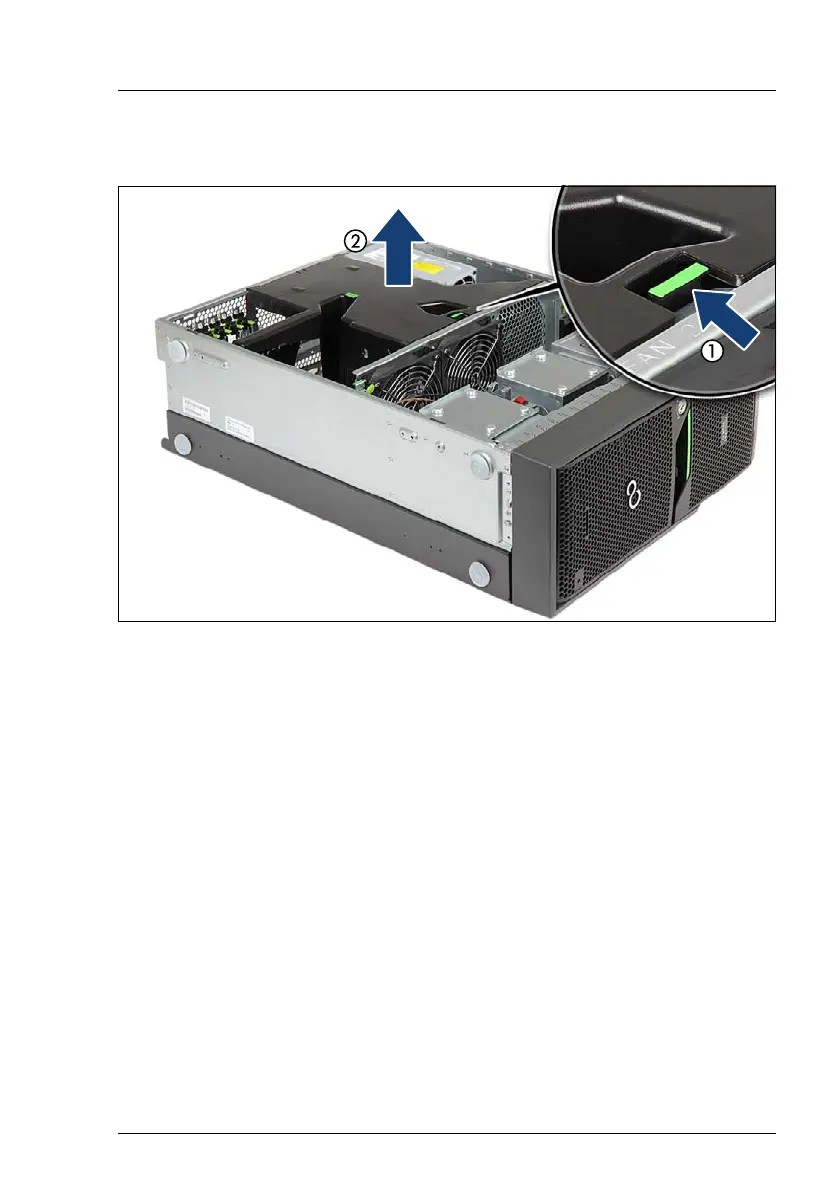

Figure 16: Removing the system air duct
Ê Press in on the green locking latch to disengage the system air duct (1).
Ê Hold the system air duct by the two green touch points and lift it out of the
chassis (2).
