Fujitsu PRIMERGY TX150 S8 - Removing the Top Cover

TX150 S8 / TX200 S7 Upgrade and Maintenance Manual 55
Basic hardware procedures
4.4.1.3 Removing the top cover

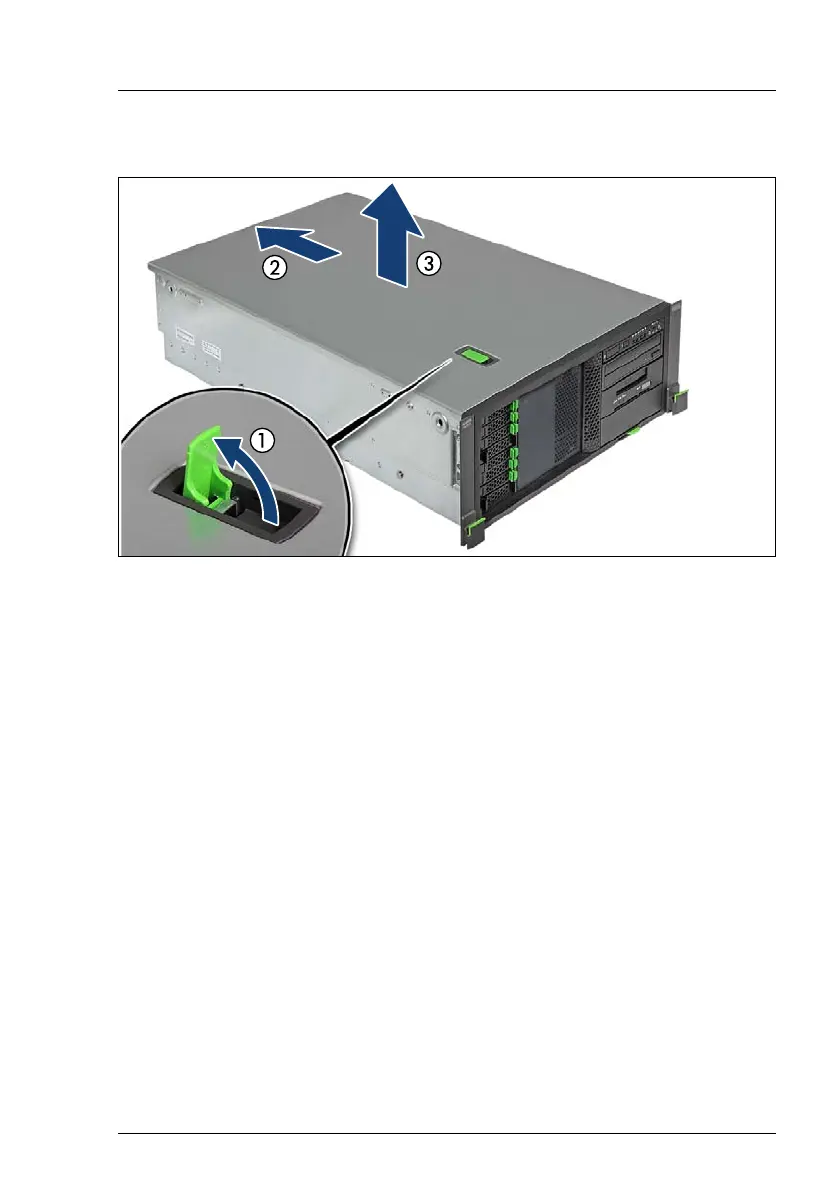

Figure 5: Removing the top cover (rack server)
Ê Open the locking lever (1). This will slide the top cover back disengaging the
locking mechanism (2).
Ê Remove the top cover (3).
