140 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
Hard disk drives / solid state drives
7.2.2 16x 2.5-inch HDD / SSD configuration
I This configuration requires the 8x 2.5-inch HDD extension box (see
section "HDD extension boxes" on page 169.
7.2.2.1 Mounting order

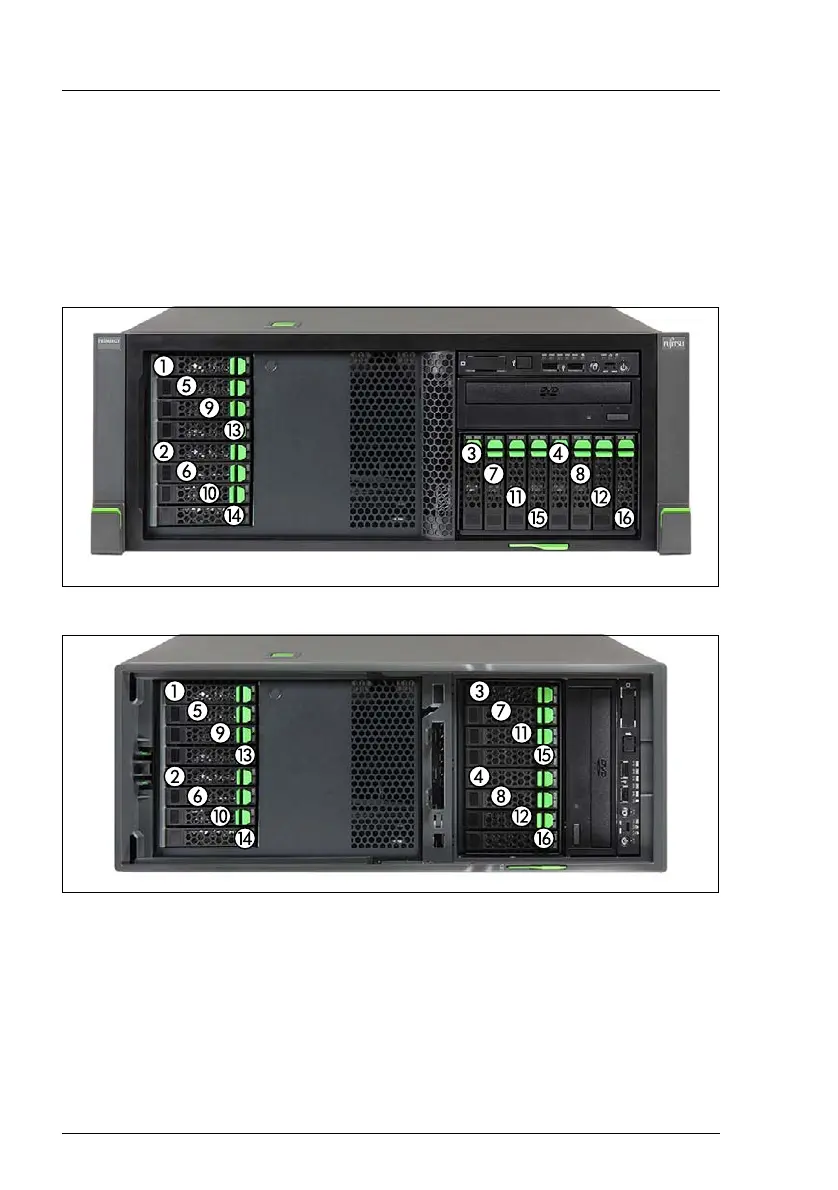

Figure 64: Mounting order with up to 16 2.5-inch HDDs (4 SAS backplanes) - Rack version
Figure 65: Mounting order with up to 16 2.5-inch HDDs (4 SAS backplanes) - Tower version
