Basic hardware procedures
4.5.3.2 Installing accessible drive and HDD bay covers

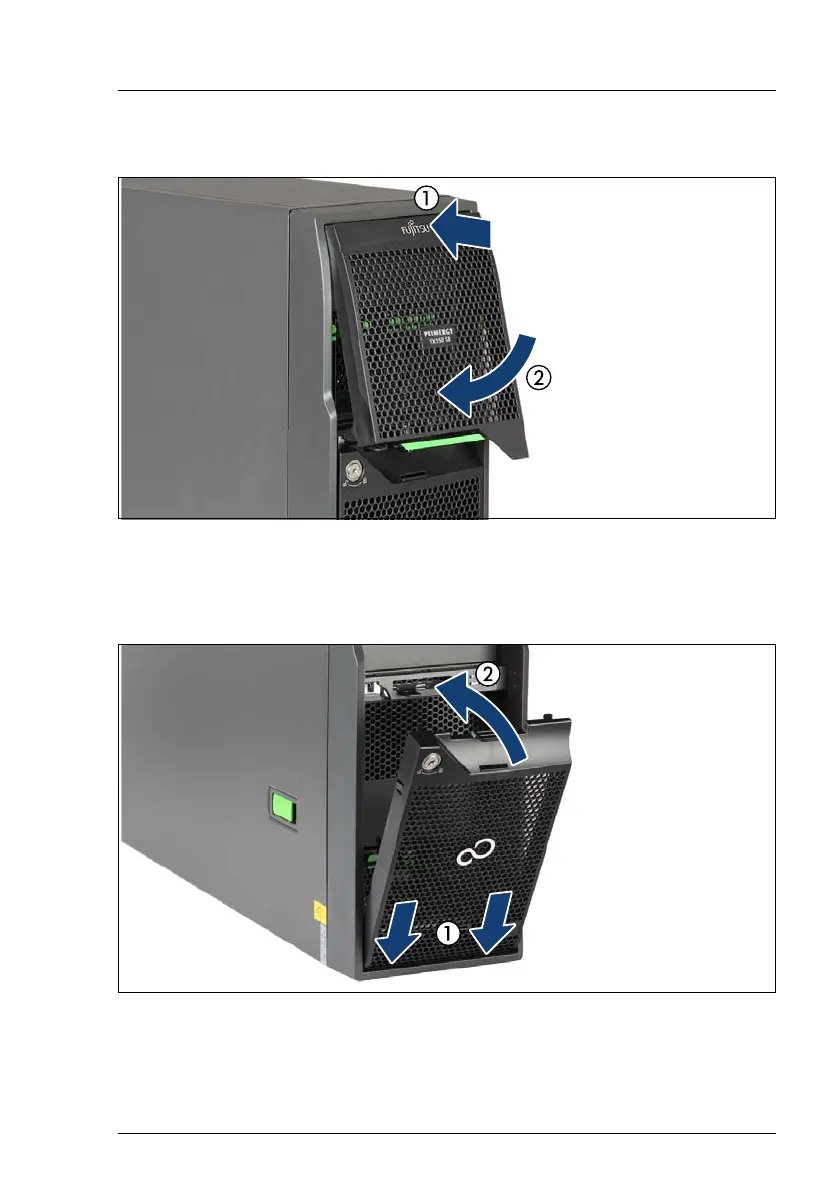

Figure 24: Installing the accessible drive bay cover
Ê Insert the accessible drive bay cover into the front cover as shown (1).
Ê Fold in the accessible drive bay cover until it locks in place (2).
Figure 25: Installing the HDD bay cover
Ê Insert the HDD bay cover into the front cover as shown (1).
Ê Fold in the HDD bay cover until it locks in place (2).
