14.3.2 Removing the UFM
14.3.2.1 Preliminary steps
Ê "Disabling or suspending BitLocker functionality" on page 79
Ê "Locating the defective server" on page 47
Ê "Shutting down the server" on page 50
Ê "Disconnecting the server from the mains" on page 50.
Ê "Getting access to the component" on page 51.
14.3.2.2 Removing the UFM

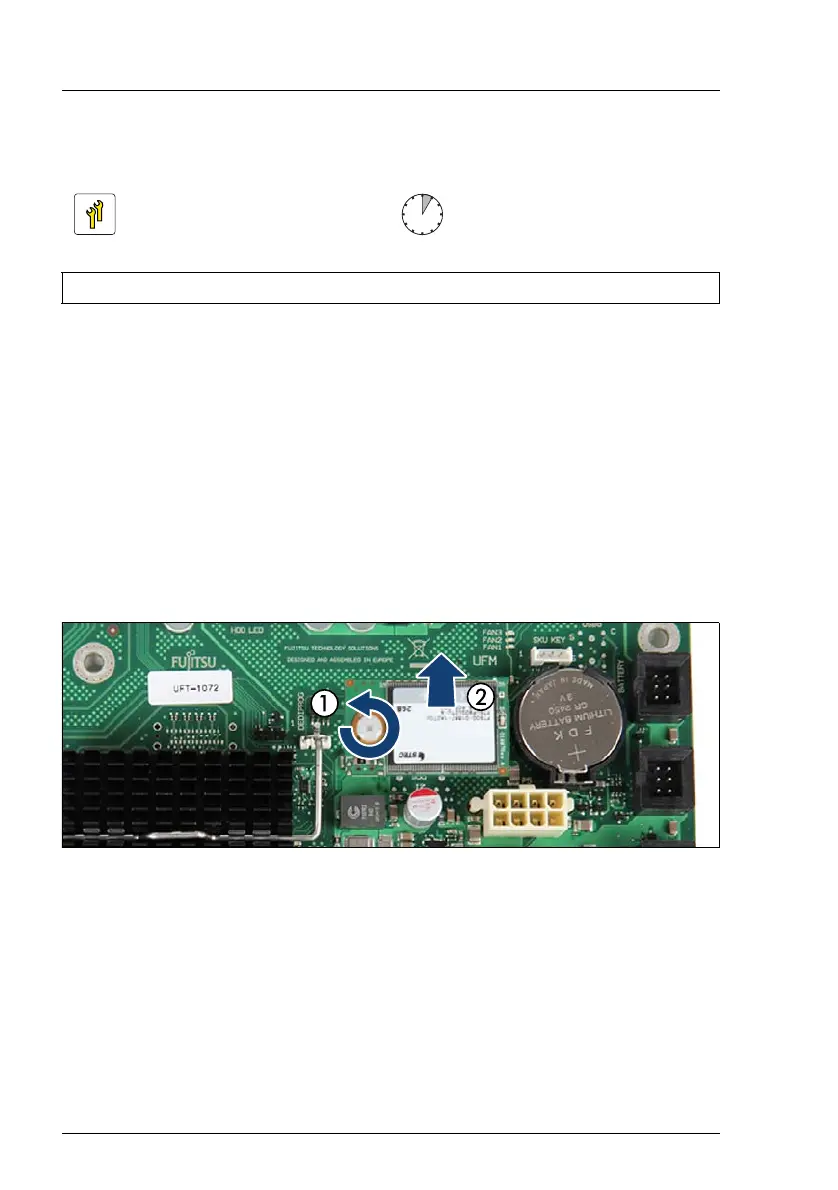

Figure 269: Removing the UFM (A)
Ê Remove the nylon screw (1).
Ê Disconnect and remove the UFM (2).
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: Phillips PH1 / (+) No. 1 screw driver
