Fujitsu PRIMERGY TX150 S8 - Installing the HDD Extension Box

TX150 S8 / TX200 S7 Upgrade and Maintenance Manual 175
Hard disk drives / solid state drives
7.4.2.3 Installing the HDD extension box

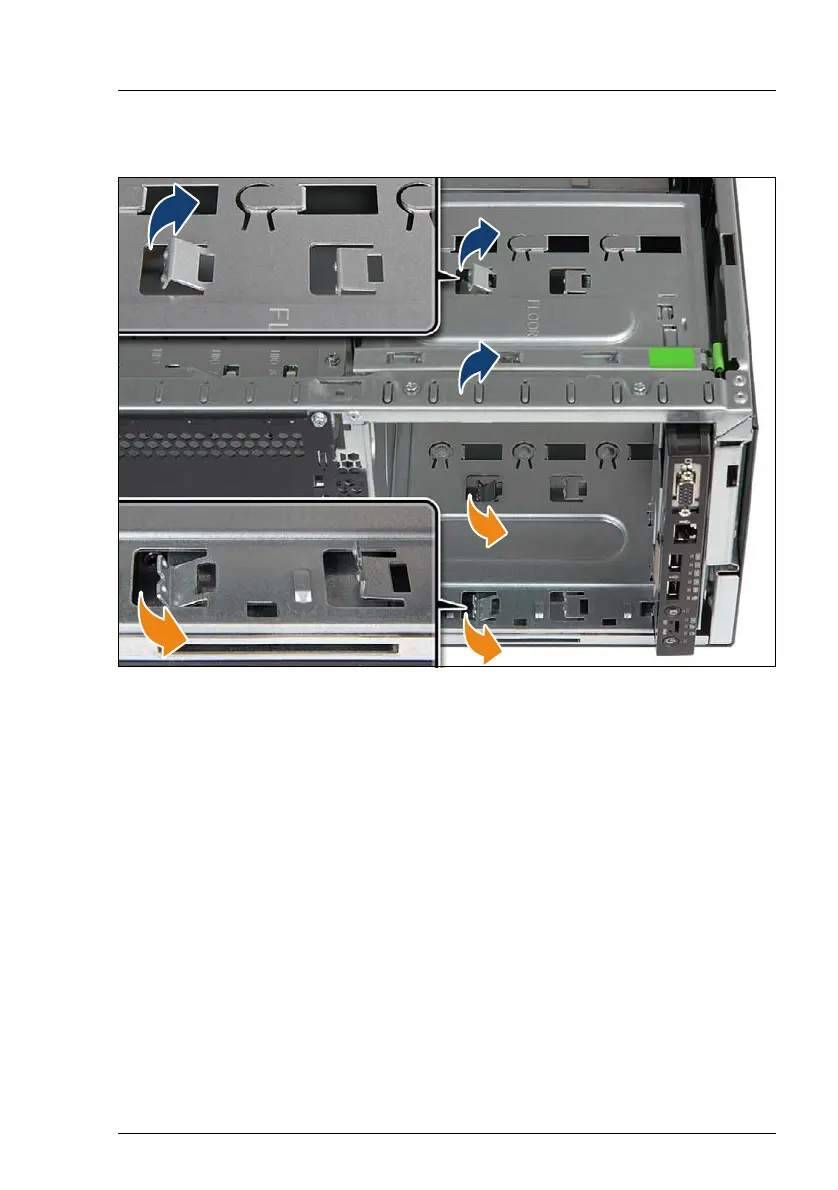

Figure 105: Checking mounting bracket positions
I Installing a 4x 3.5-inch HDD extension box: bend all mounting brackets
outward.
Ê Using a screw driver, bend the mounting brackets of the middle installation
bay outwards (see close-up):
Ê Bend up the upper two mounting brackets (see blue arrows).
Ê Bend down the lower two mounting brackets (see orange arrows).
