TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 299
Accessible drives and LSD
Ê Ensure that the four pins on the frame (see arrows) engage with the side
holes on the dummy insert.
Ê Insert the slimline ODD dummy module into the Multibay box and push back
until the locking tab engages as shown in figure 204 on page 291.
12.5.2.4 Removing the LSD module

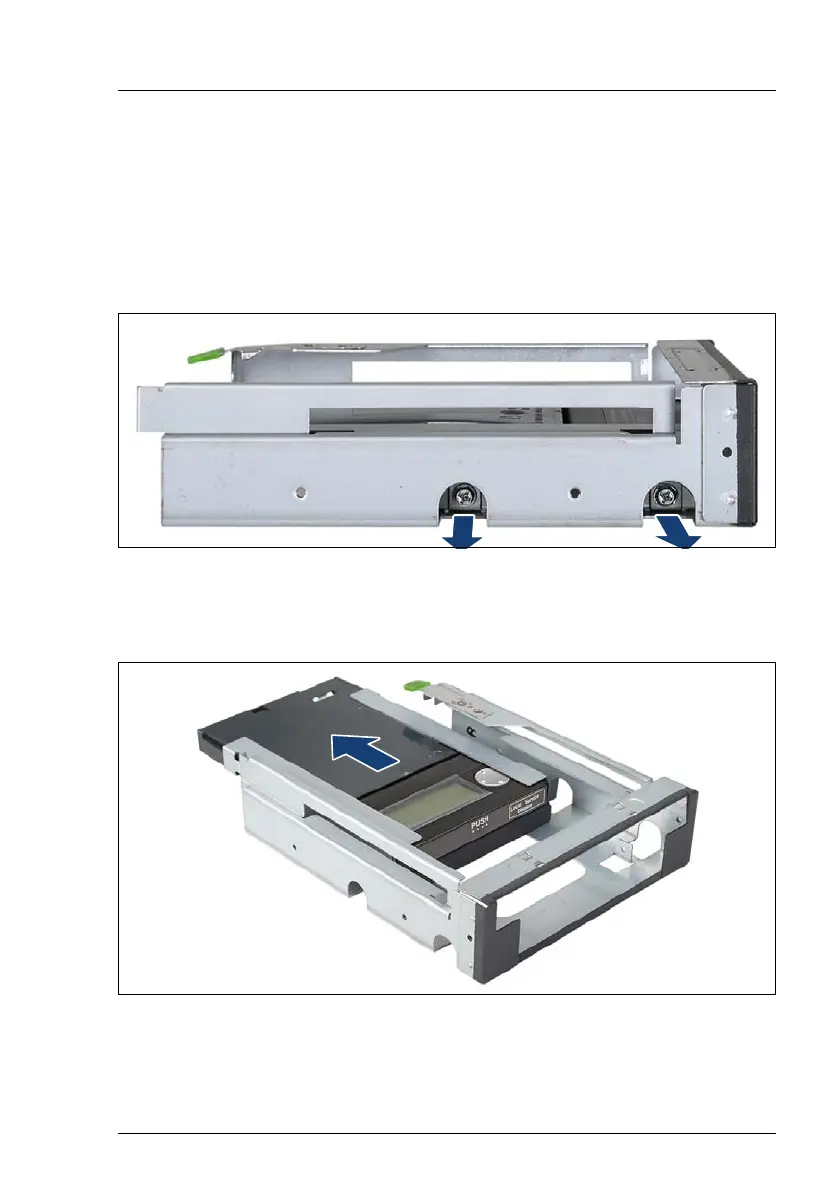

Figure 215: Removing the 3.5-inch installation frame from the Multibay box (A)
Ê Remove two screws on either side of the Multibay box to disengage the 3.5-
inch installation bay.
Figure 216: Removing the 3.5-inch installation frame from the Multibay box (B)
Ê Slide the 3.5-inch installation frame out of the Multibay box as shown.
