298 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
Accessible drives and LSD
Ê From inside the Multibay box, press out on the slimline ODD module and pull
it out of its bay (2).

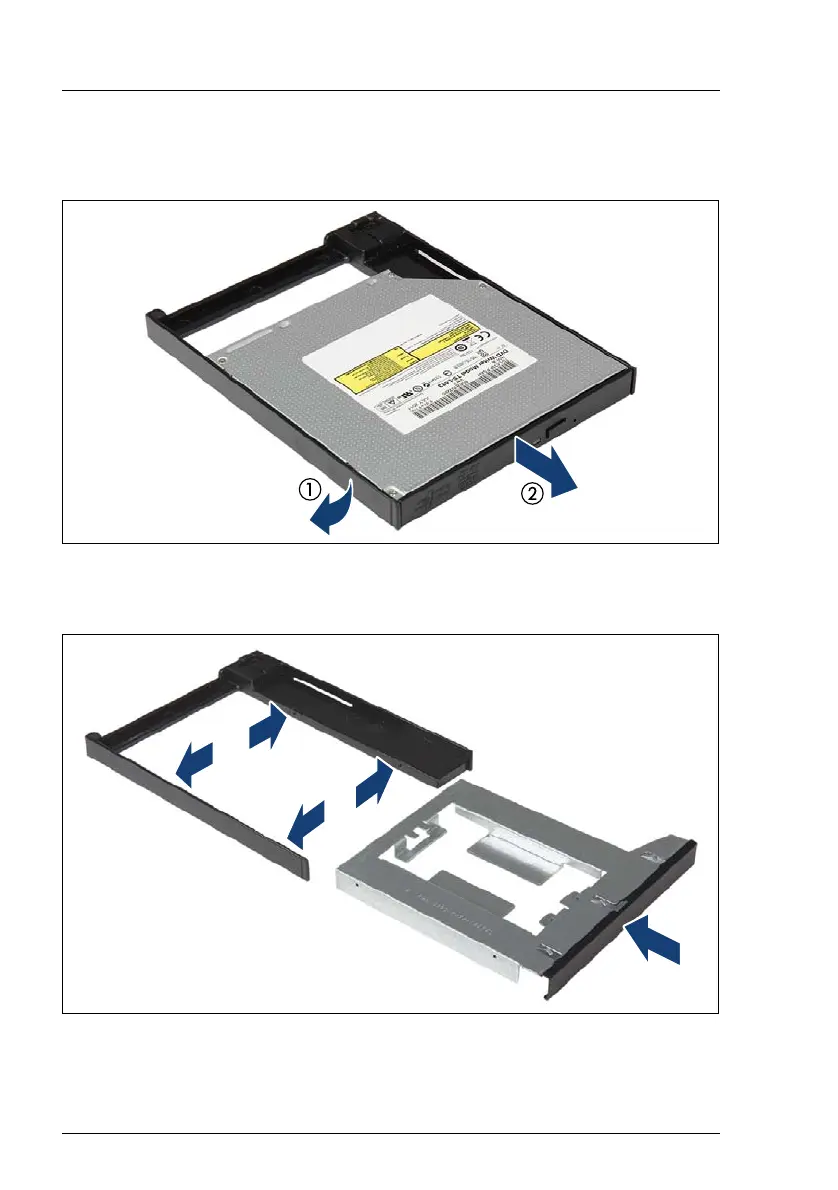

Figure 213: Removing the slimline ODD from its installation frame
Ê Disengage (1) and remove (2) the slimline ODD from its installation frame.
Figure 214: Mounting the slimline ODD dummy insert in the installation frame
Ê Fit the slimline ODD dummy insert into the slimline ODD installation frame.
