TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 293
Accessible drives and LSD

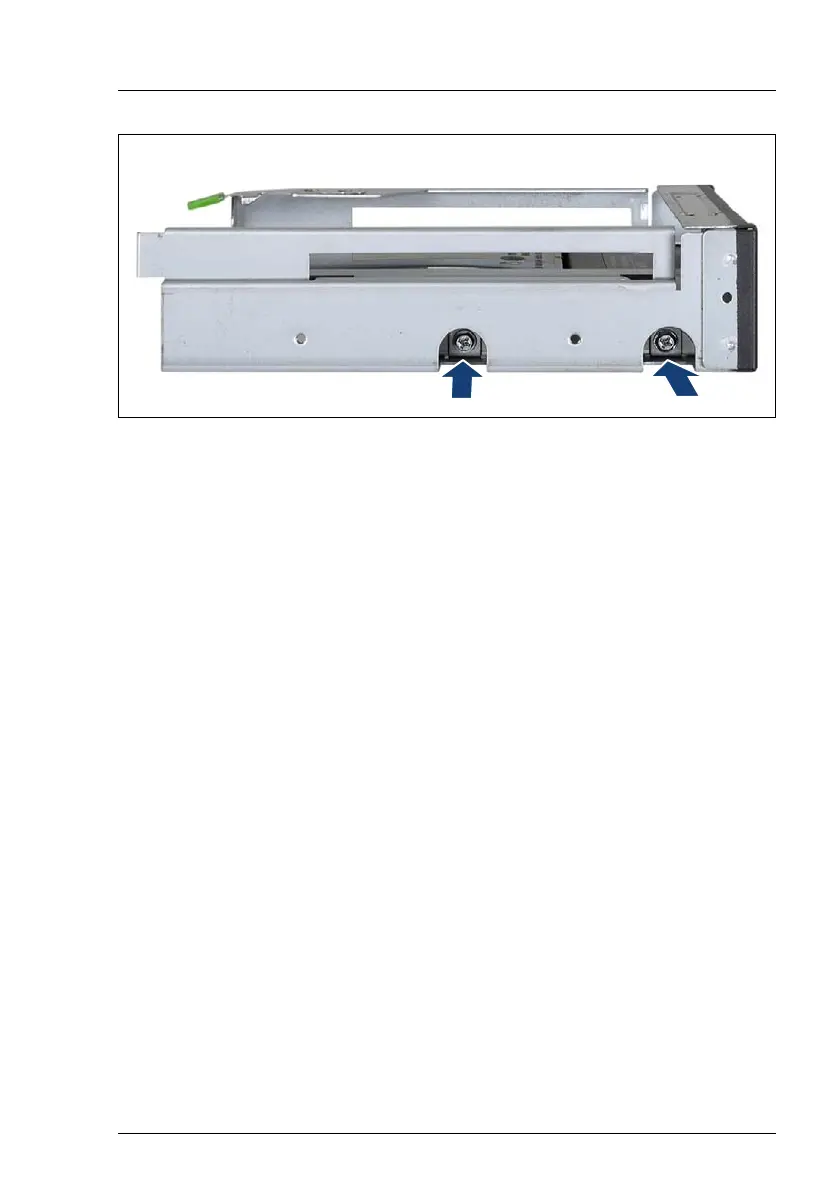

Figure 208: Installing the 3.5-inch installation frame in the Multibay box (B)
Ê Secure the installation frame in the Multibay box with two screws (M3 x 6
mm) on either side.
Ê Before inserting the Multibay box into the chassis, connect the LSD cable to
the LSD module.
12.5.1.4 Removing accessible drive dummy covers
Ê If applicable, remove the accessible dummy covers for installation bay 1 as
described in section "Removing accessible drive dummy covers" on
page 173.
12.5.1.5 Installing the Multibay box
Ê Ensure that the four mounting brackets in installation bay 1 have not been
bent out (see figure 197).
Ê Press out on the locking latch to disengage the accessible drive locking bar
(see figure 198).
Ê Fold up the accessible drive locking bar.
