192
Upgrade and Maintenanc
e Manual
TX150 S8 / TX200 S7
Fans
Figure 1

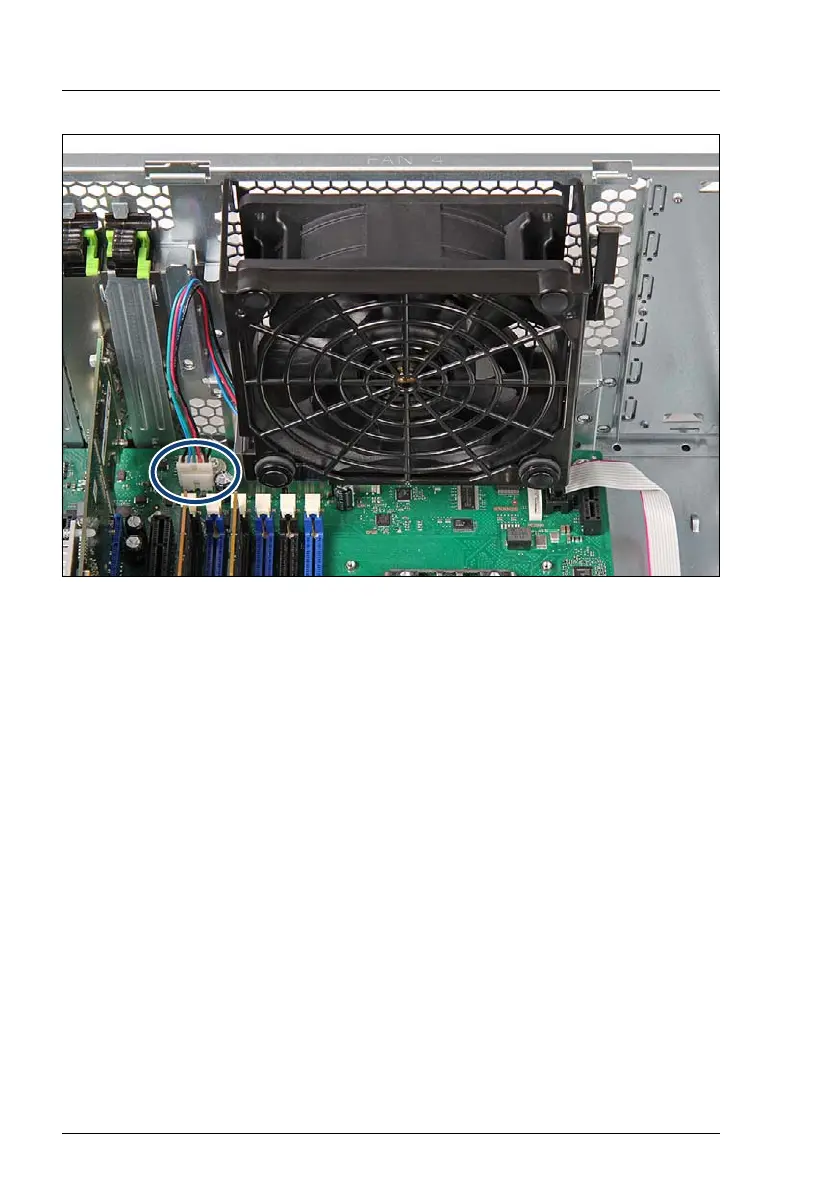

19: Connecting the rear fan cable
Ê
Connect the rear fan cable to the connector "F
AN 4" on the system board.
8.3.1.3
Concludin
g step
s
Ê
"Reassembling" on p
age
64
Ê
"Connecting the server to the mains" on p
age
74
Ê
"Switching on the server" on page
75
191
193
