Expansion cards and backup units

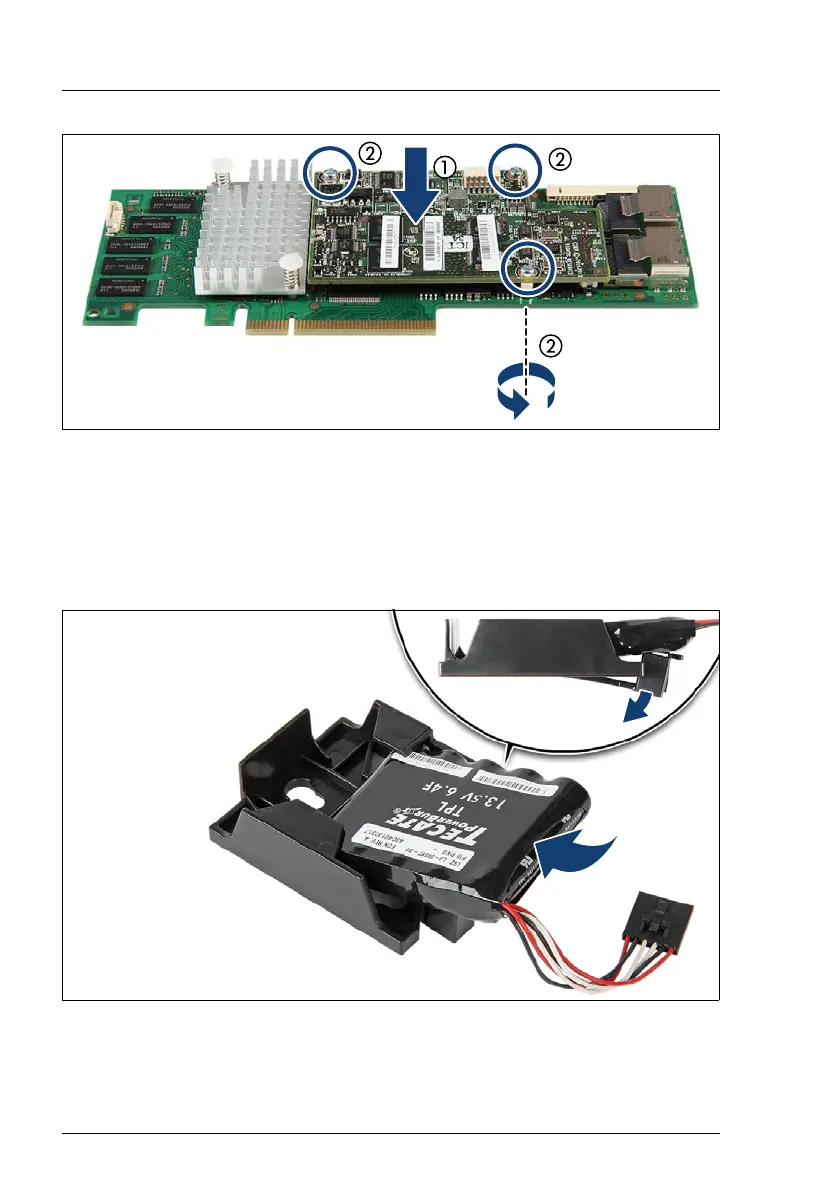

Figure 155: Installing TFM
Ê Fit the spacer bolts of the TFM on the RAID controller (1).
Ê Secure the TFM on the RAID controller with the three screws (2).
9.5.3.3 Installing the FBU in the holder
Figure 156: Installing the FBU in the holder (A)
Ê At a slight angle, fit the FBU under the right retaining bracket on the holder.
Ê Push down the FBU until it locks in place.
