182 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
Hard disk drives / solid state drives
Installing accessible drive covers

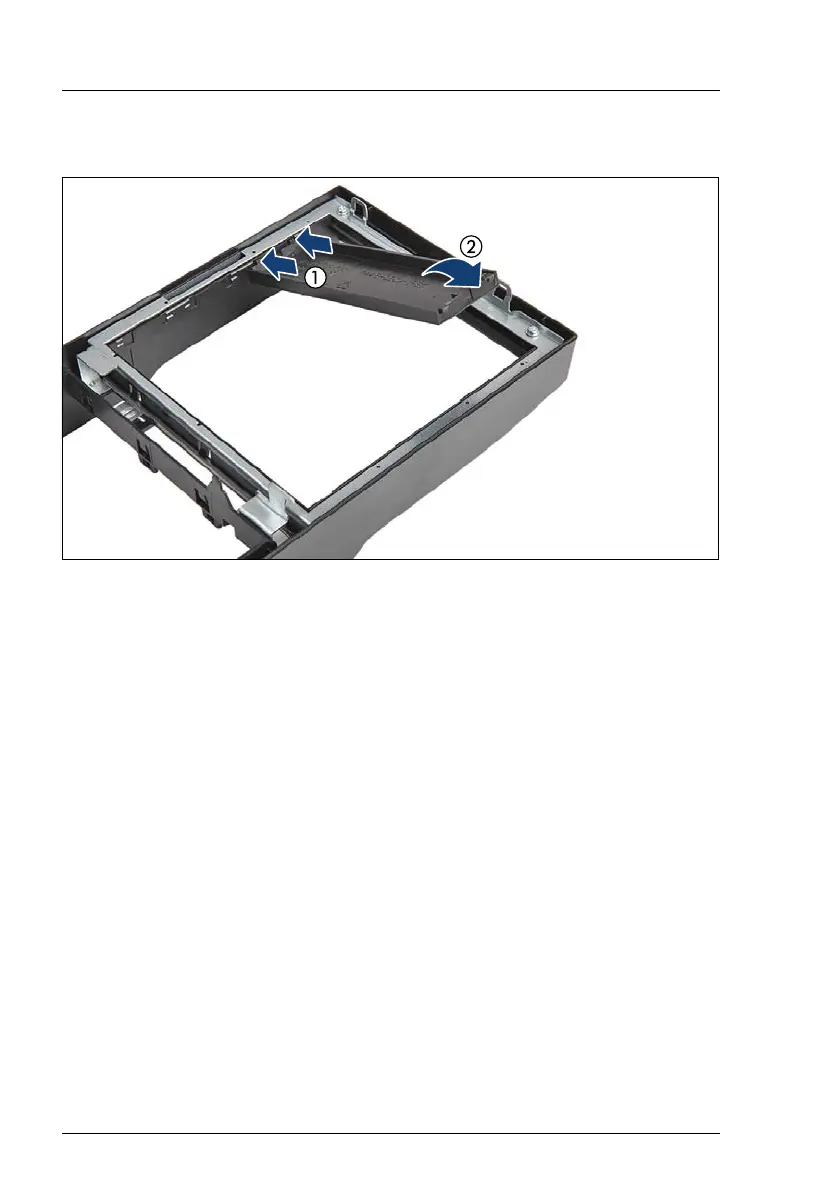

Figure 112: Installing accessible drive covers
I Installing accessible drive covers is illustrated by the example of the
tower server. In case of the rack front cover, the procedure is identical.
Ê Ensure that an accessible drive filler cover has been installed in every empty
drive bay.
Ê Turn the front cover face down.
Ê Join the two lugs on one edge of the accessible drive cover with the right
inner edge of the front cover (1).
Ê Fold down the accessible drive cover until it snaps in place (2).
7.4.3.4 Concluding steps
Ê Removing a 2x 3.5-inch HDD extension box: "Removing the slimline ODD
or LSD" on page 309 (if applicable)
Ê Removing a 4x 3.5-inch HDD extension box: "Removing the slimline ODD"
on page 322 (if applicable)
Ê "Installing the system fan holder" on page 77
Ê "Reassembling" on page 64
