TX150 S8 / TX200 S7 Upgrade and Maintenance Manual 77
Basic hardware procedures
Installing the system fan holder
Ê Insert the system fan holder into its two guides (3).
Ê Carefully lower the system fan holder into the chassis until the two locking
tabs (see close-ups) engage.
4.9 Handling the anti-tilt bracket

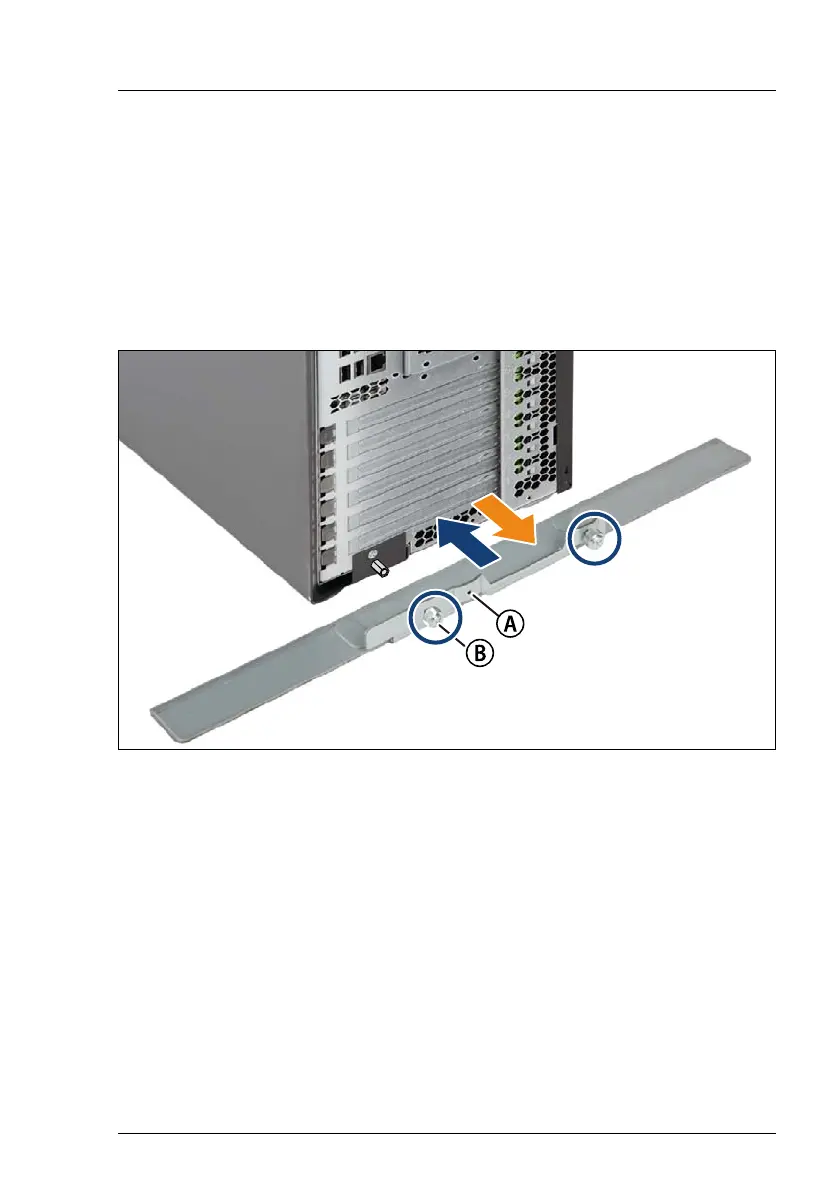

Figure 32: Handling the anti-tilt bracket
Removing the anti-tilt bracket
Ê Loosen the two knurled thumb screws on the anti-tilt bracket (see circles).
Ê Remove the anti-tilt bracket.
Installing the anti-tilt bracket
Ê If applicable, remove the left knurled thumb screw from the middle screw
hole (A) and assemble it to the left screw hole (B).
Ê Fit the anti-tilt bracket onto the bottom edge of the server rear.
Ê Secure the anti-tilt bracket on the rear of the server with two knurled thumb
screws (see circles). Screw the knurled thumb screw of the left side first.
