178 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
Hard disk drives / solid state drives
I When working on a rack-mounted server, proceed as follows:

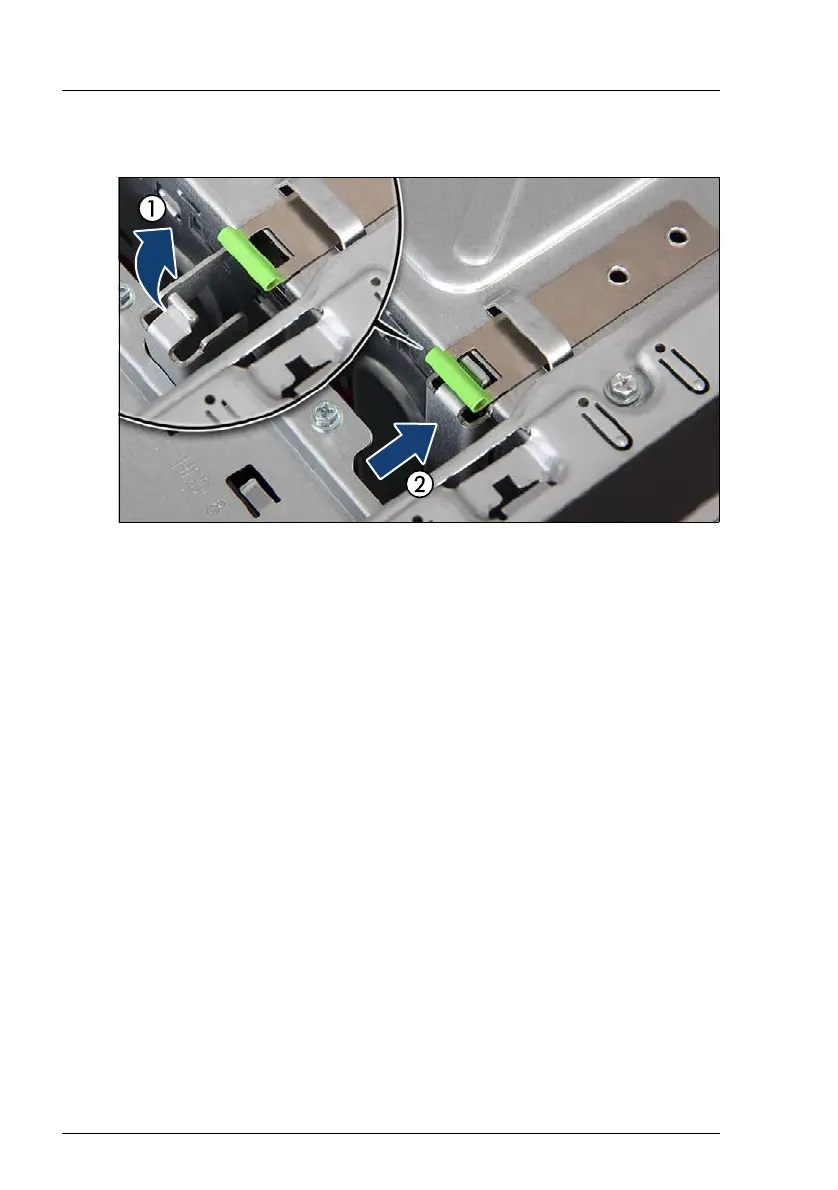

Figure 109: Closing the accessible drive locking bar (rack systems)
Ê Fold in the locking bar (1) until it locks in place (2,see close-up).
Ê Connect SAS and power cables to the HDD extension box see section
"Cabling plans" on page 405.
Ê If applicable, connect slimline ODD and LSD module cables see section
"Cabling plans" on page 405.
Ê Install HDD modules or HDD dummy modules into the additional HDD slots
as described in sections "2.5-inch HDD / SSD configurations" on page 138
or "3.5-inch HDD configurations" on page 152.
7.4.2.4 Concluding steps
Ê "Installing the system fan holder" on page 77
Ê "Reassembling" on page 64
Ê "Connecting the server to the mains" on page 74
Ê "Switching on the server" on page 75
Ê "Enabling BitLocker functionality" on page 100
