60 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
Basic hardware procedures
4.4.2.3 Removing accessible drive and HDD bay covers

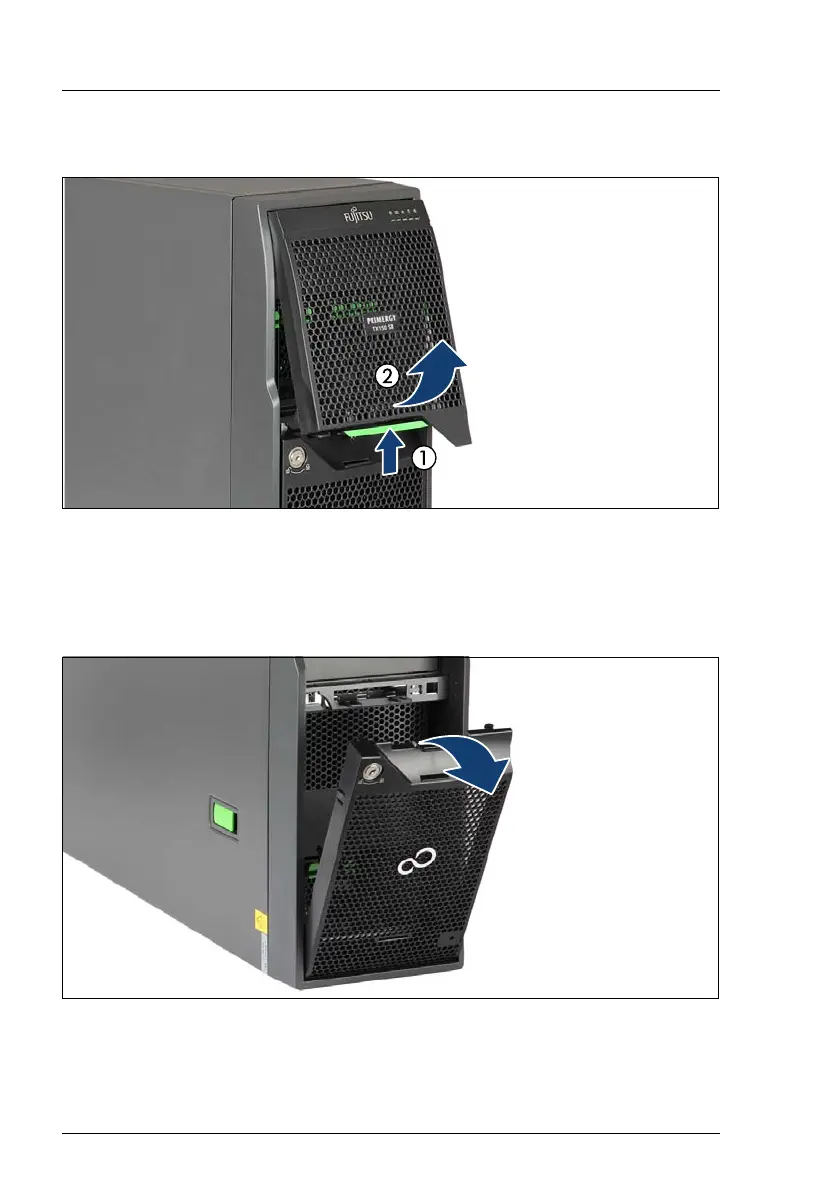

Figure 12: Removing the accessible drive bay cover
Ê Press up on the locking latch (1) and fold out the accessible drive bay cover
(2).
Ê Remove the accessible drive bay cover from the front cover.
Figure 13: Removing the HDD bay cover
Ê Pull out on the handle on the upper edge of the HDD bay cover.
Ê Fold out and remove the HDD bay cover from the front cover.
