144 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
Hard disk drives / solid state drives

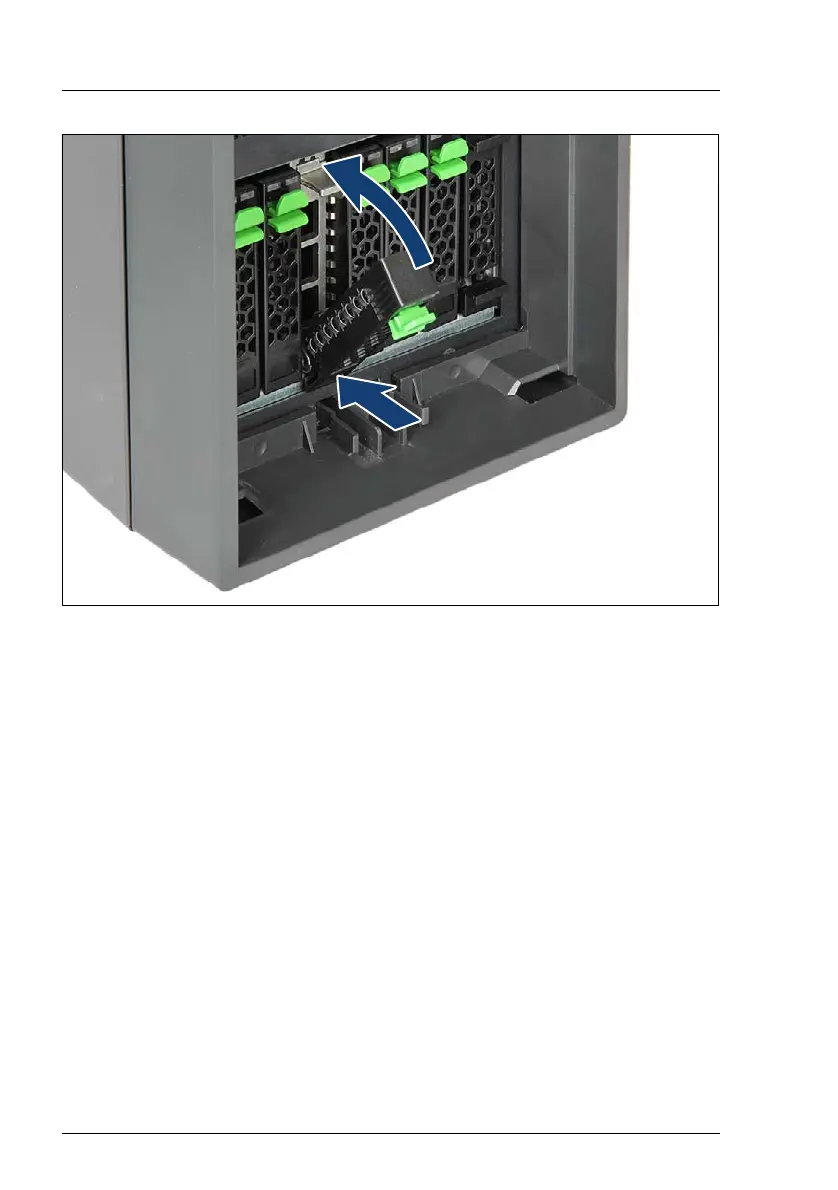

Figure 69: Inserting the 2.5-inch HDD / SSD module
Ê Insert the HDD / SSD module into a drive bay and carefully push back as far
as it will go.
Ê Close the locking lever to lock the hard disk drive in place.
7.2.3.4 Concluding steps
Ê "Installing accessible drive and HDD bay covers" on page 71
Ê "Performing a RAID array rebuild" on page 101
