TX150 S8 / TX200 S7
Upgrade and Maintenance Manual
231
Expansion cards and backup un
its

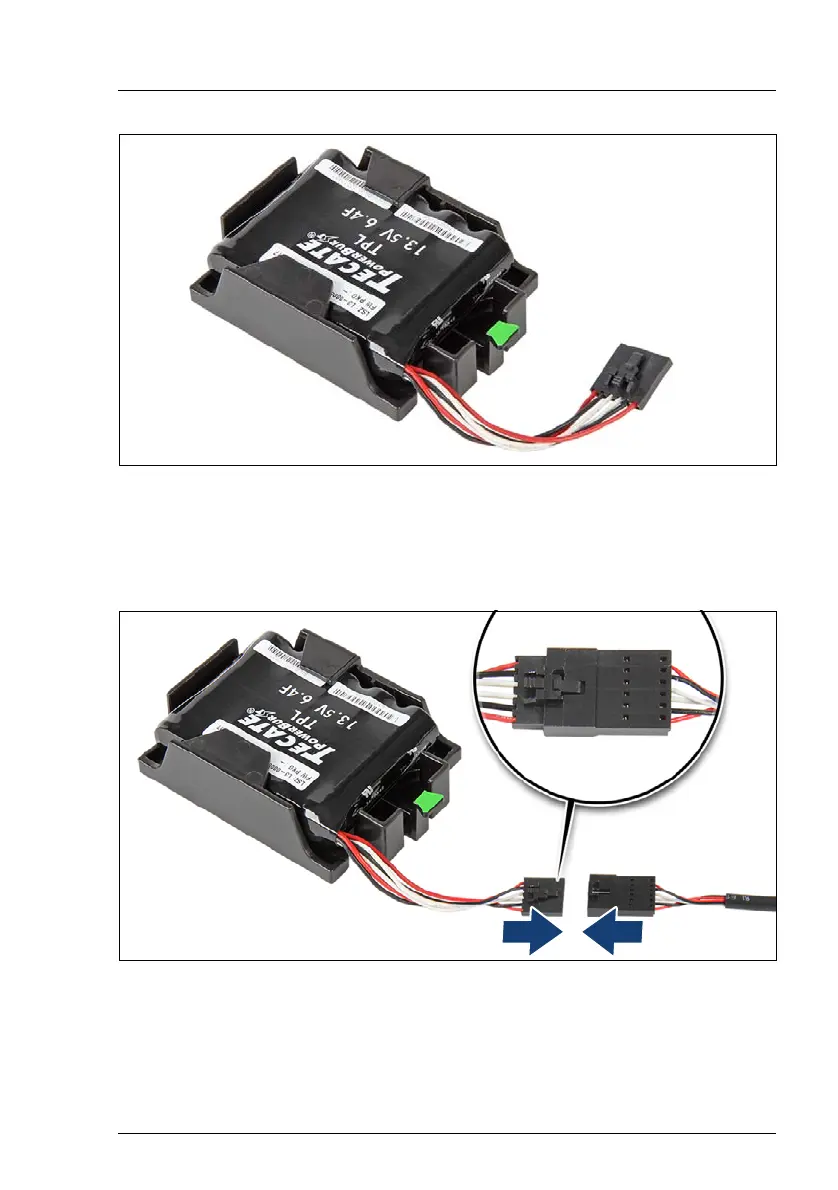

Figure 157: In
stall
ing the FBU
in the holder (B)
Ê
Ensure that the FBU is properly seated in the holder
.
9.5.3.4
Connect
ing the FBU cable to the FBU
Figure 158: Connecting the FBU cable
Ê
Connect the FBU cable to the FBU.
230
232
