116 Upgrade and Maintenance Manual

TX150 S8 / TX200 S7

Power supply units

6.2.2.4 Installing the new standard power supply unit

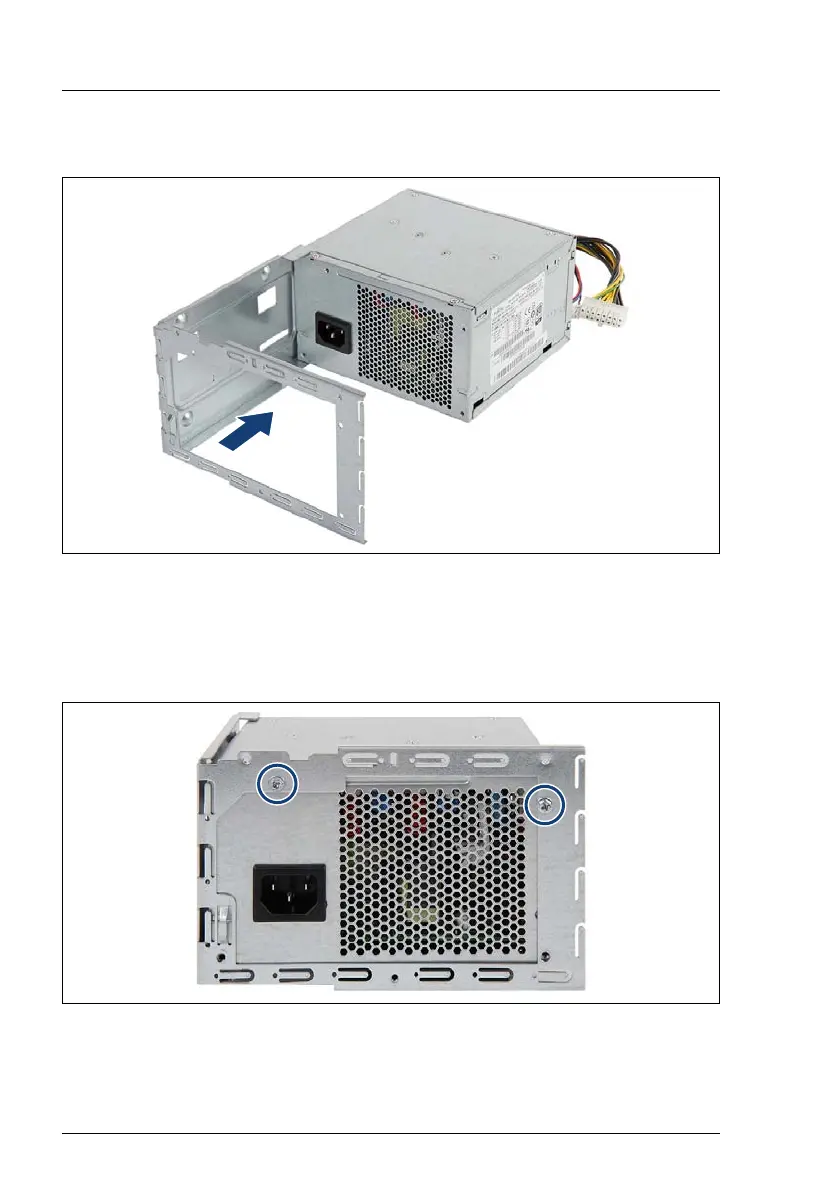

Figure 44: Installing PSU in the installation frame (A)

Ê Fit the installation frame to the power supply unit.

Ê Ensure that the installation frame is correctly seated on the power supply

unit.

Figure 45: Installing PSU in the installation frame (B)

Ê Secure the installation frame to the power supply unit with two screws (see

circles).
