386 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
System board and components

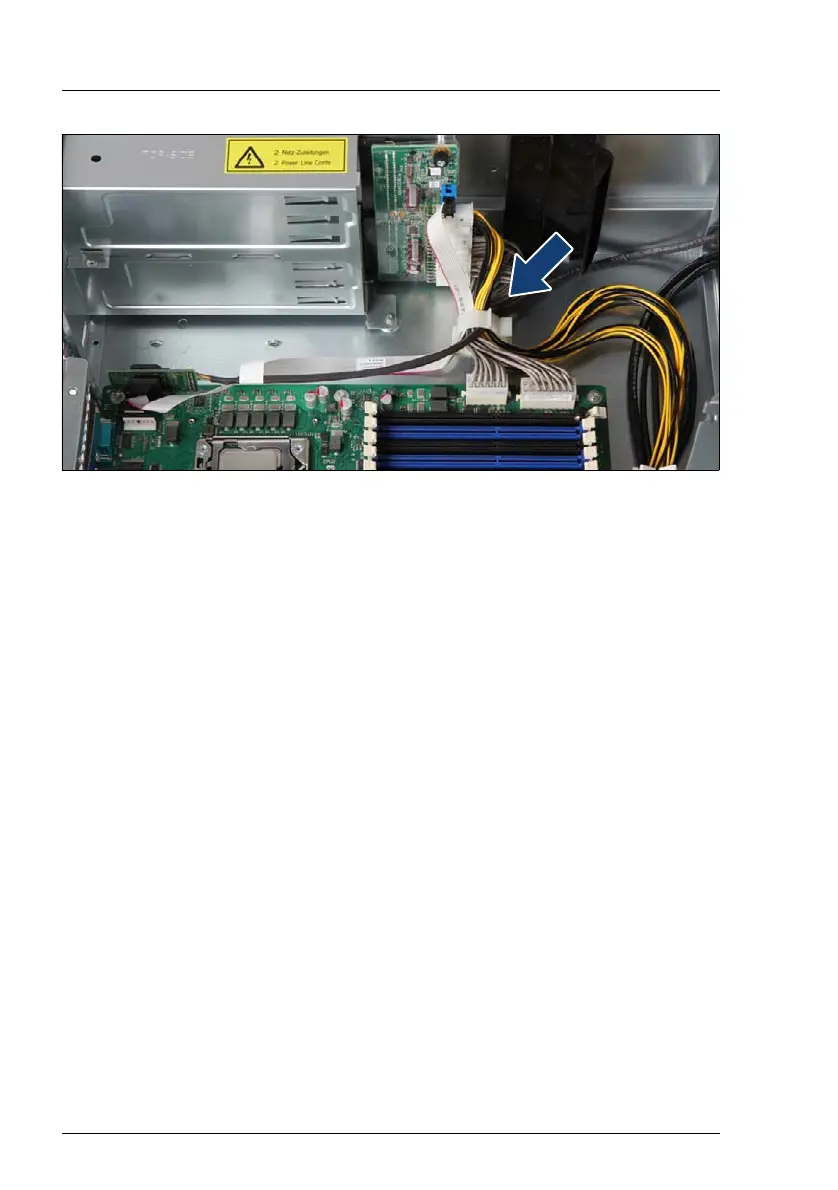

Figure 295: Connecting cables to the system board (C)
Ê If applicable, run the front LAN cable through the cable clamp as shown.
14.6.4 Concluding steps
Ê Reconnect all remaining cables to the system board. For a complete cabling
overview, please refer to section "Cabling plans" on page 405.
Ê Reinstall all remaining system board components as shown in the related
sections:
Heat sinks: refer to section "Installing processor heat sinks" on page 268
Memory modules: refer to section "Installing a memory module" on
page 249
I Install all memory modules into their original slots.
Expansion cards: refer to section "Installing a memory module" on
page 249
I Install all expansion cards into their original slots.
UFM (if applicable): refer to section "Installing the UFM" on page 353
TPM (if applicable): refer to section "Installing the TPM" on page 361
