TX150 S8 / TX200 S7
Upgrade and Maintenance Manual
263
Processors
1
1.3.2.1
Inst
alling the protective cover

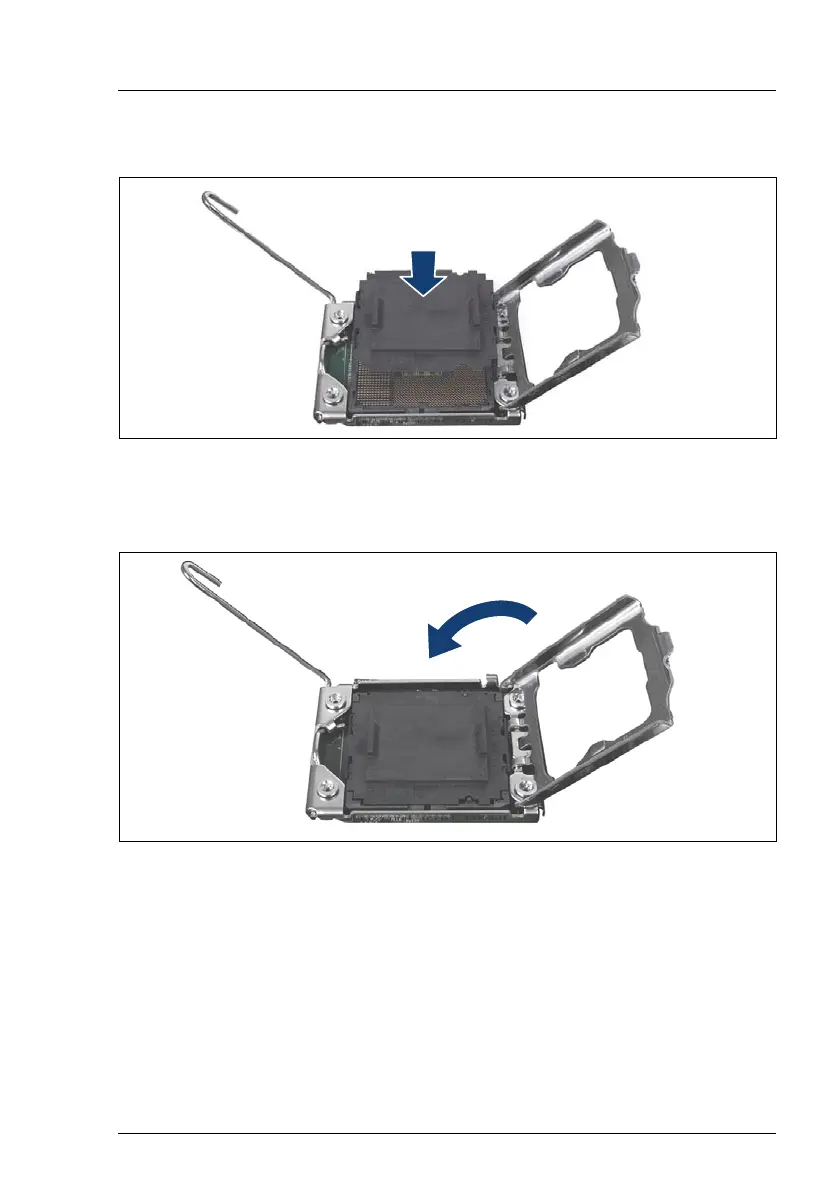

Figure 182: Attaching the protective socket cover
Ê
Carefully lower the protective socket cover onto the processor socket in a
vertical motion until it snaps
in place.
Figure 183: Clos
ing the load plate
Ê
Close the load plate of the processor
.
262
264
