262 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7

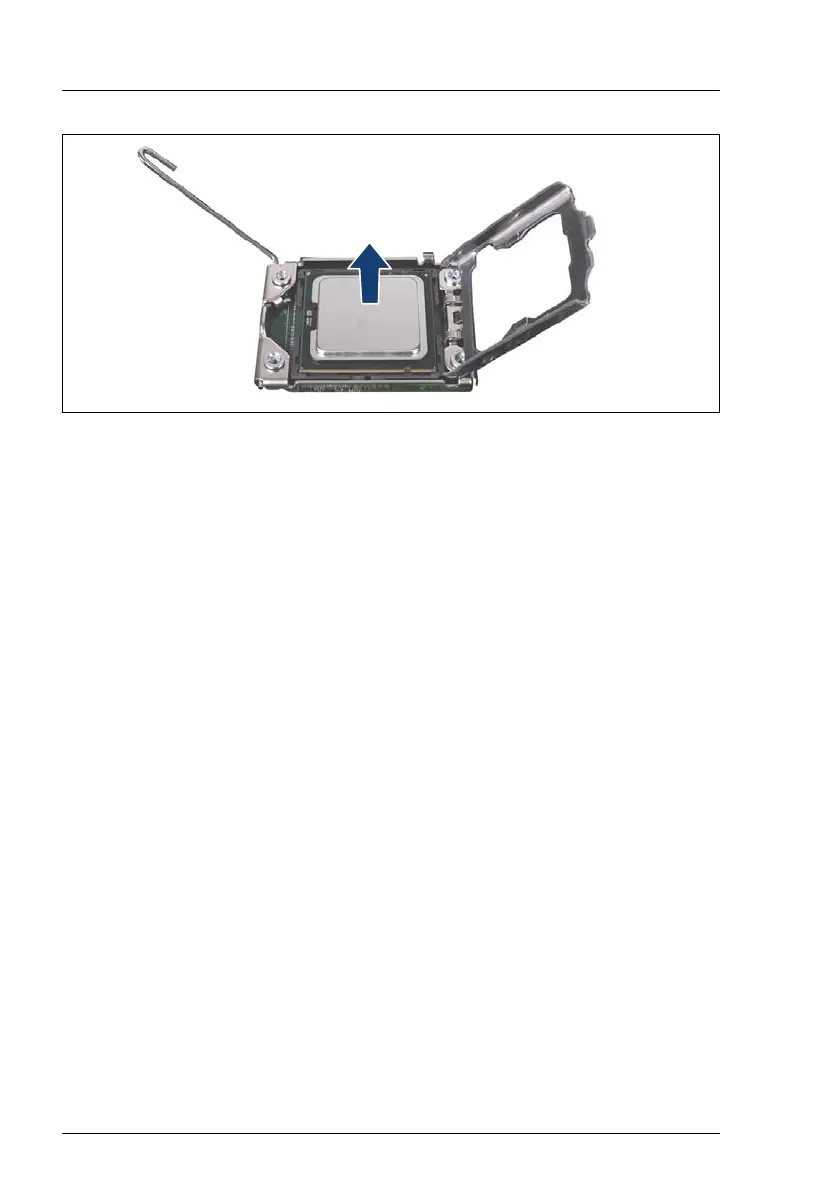

Figure 181: Removing the processor
Ê Carefully remove the defective processor from its socket in a vertical motion.
V CAUTION!
Be careful not to touch or bend the spring contacts on the processor
socket.
Ê Thoroughly clean residual thermal paste from the processor surface using a
lint-free cloth.
Ê Store the processor in a save place for later reuse.
V CAUTION!
Processors are extremely sensitive to electrostatic discharge and
must be handled with care. After a processor has been removed from
its protective sleeve or from its socket, place it upside down on a
nonconducting, antistatic surface. Never push a processor over a
surface.
Be careful not to touch or bend the spring contacts on the processor
socket.
